IKEDA 9TS MC CARTRIDGE
- Output Voltage: 0.35mVrms (1kHz 35.4mm/sec., at 45°peak)
- Coil Impedance: 6.0 ohms (1kHz)
- Appropriate Stylus Force: 2.0grams ±0.2 grams
- Frequency Response: 10Hz ～ 45kHz
- Channel Separation: over 27dB (1kHz)
- Channel Balance: within 1.0dB (1kHz)
- Stylus Chip: Oval-shaped solid Diamond
- Cantilever: Double layered duralumin pipe.
- Weight: 10 grams
- Compliance: 7 x 10-6cm/dyne
Ikeda 9TT MC Cartridge
Product Specifications:
Electromagnetic Generator: Moving Coil (MC)
Output Voltage: 0.16mVrms (1kHz 35.4mm/sec. at 45°peak)
Coil Impedance: 2.0 ohms (1kHz)
Appropriate Stylus Force: 1.8 grams ±0.2 grams
Frequency Response: 10Hz - 45kHz
Channel Separation: Over 27dB (1kHz)
Channel Balance: Within 1.0dB (1kHz)
Stylus Chip: Solid Diamond, Line Contact
Cantilever: Double layered duralumin pipe
Weight: 10 Grams
Ikeda HBC-MS-5000DR Tonearm Cable
The HBC-MS-5000 series, which is the product of many years of basic research and has excellent transmission efficiency, is a high-quality cable that uses a hybrid structure made of high-purity 6N copper and OFC material.
If you use it to connect your tone arm, you will enjoy a high S/N ratio, high density, and unparalleled natural sound.
The plug is machined with high precision, and the surface treatment is rhodium plating.
The structure of each connector is assembled using Teflon resin with good insulating properties.
The shield is braided with over 90% polyurethane (black).
IKEDA KAI MC CARTRIDGE
- Electromagnetic Generator : Moving Coil (MC)
- Output Voltage : 0.19mVrms (1kHz 35.4mm/sec. at 45° peak)
- Coil Impedance : 2.5 ohms.(1kHz)
- Appropriate Stylus Force : 1.8 grams ± 0.2 grams
- Frequency Response Range: 10Hz ~ 45kHz.
- Channel Separation : over 27dB (1kHz)
- Channel Balance: within 1.0dB (1kHz)
- Stylus Chip : Micro-ridge sold pure diamond.
- Cantilever: made of Boron
- Weight : 11.5 grams
- Compliance : 7 x 10-6 cm/dyne

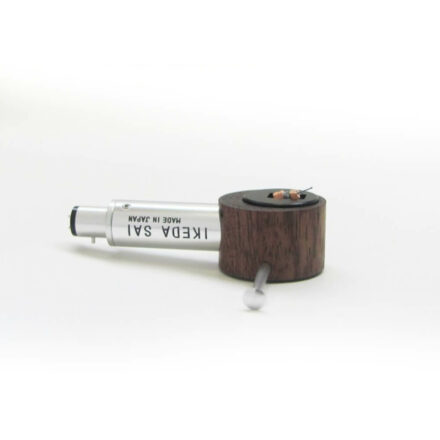

IKEDA SAI MC CARTRIDGE
- MC cartridge: Universal type dedicated to tonearm.
- Output Voltage: 0.3 mVrms (1kHz 35.4mm/sec., at 45°peak)
- Coil Impedance: 2.5 ohms (1kHz)
- Appropriate Stylus Force: 2.0grams ±0.2 grams
- Frequency Response: 10Hz ～ 45kHz
- Channel Separation: over 30dB (1kHz)
- Channel Balance: within 0.5dB (1kHz)
- Stylus Chip: Micro-ridge solid Diamond
- Cantilever: made of Boron.
- Weight: 30 grams
- Compliance: 7 x 10-6cm/dyne
