Lumin Amp Specifications
OPERATING MODE: (selectable)
Stereo, Dual Mono or Bridged mode
INPUT: (selectable)
1 x XLR pair (pin 2 hot), 1 x RCA pair
POWER:
160W per channel into 8Ω
320W per channel into 4Ω
640W into 8Ω (Bridged)
POWER SUPPLY:
Available in 220–240V AC and 110–120V AC versions ~ 50/60Hz
POWER CONSUMPTION:
Standby <0.5W
Idle 40W
Max 700W
FREQUENCY RESPONSE:
20hz – 40000hz ± 0.1db
SIGNAL TO NOISE RATIO:
103db, unweighted
INPUT IMPEDANCE:
200kΩ Balanced (XLR)
100kΩ Unbalanced (RCA)
OUTPUT IMPEDANCE:
0.1Ω
INPUT SENSITIVITY:
1.16Vrms
GAIN:
+26dB (Stereo, Dual Mono)
+32dB (Bridged)
PROTECTION:
DC, overload and overheating protection
FINISHES:
New black and silver anodised finish to match the latest LUMIN players
CONSTRUCTION:
CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate
DIMENSIONS:
350mm (W), 374mm (D), 104mm (H)
WEIGHT:
19kg
Lumin Audio

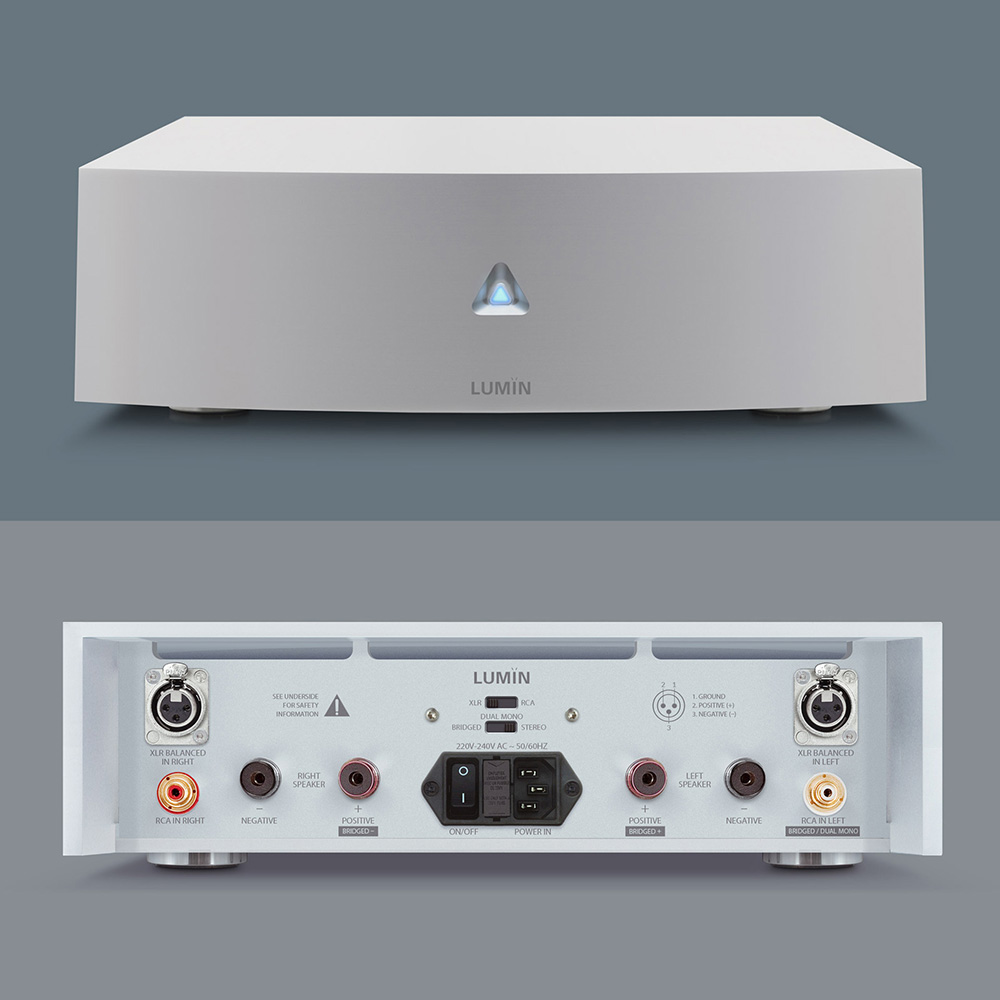

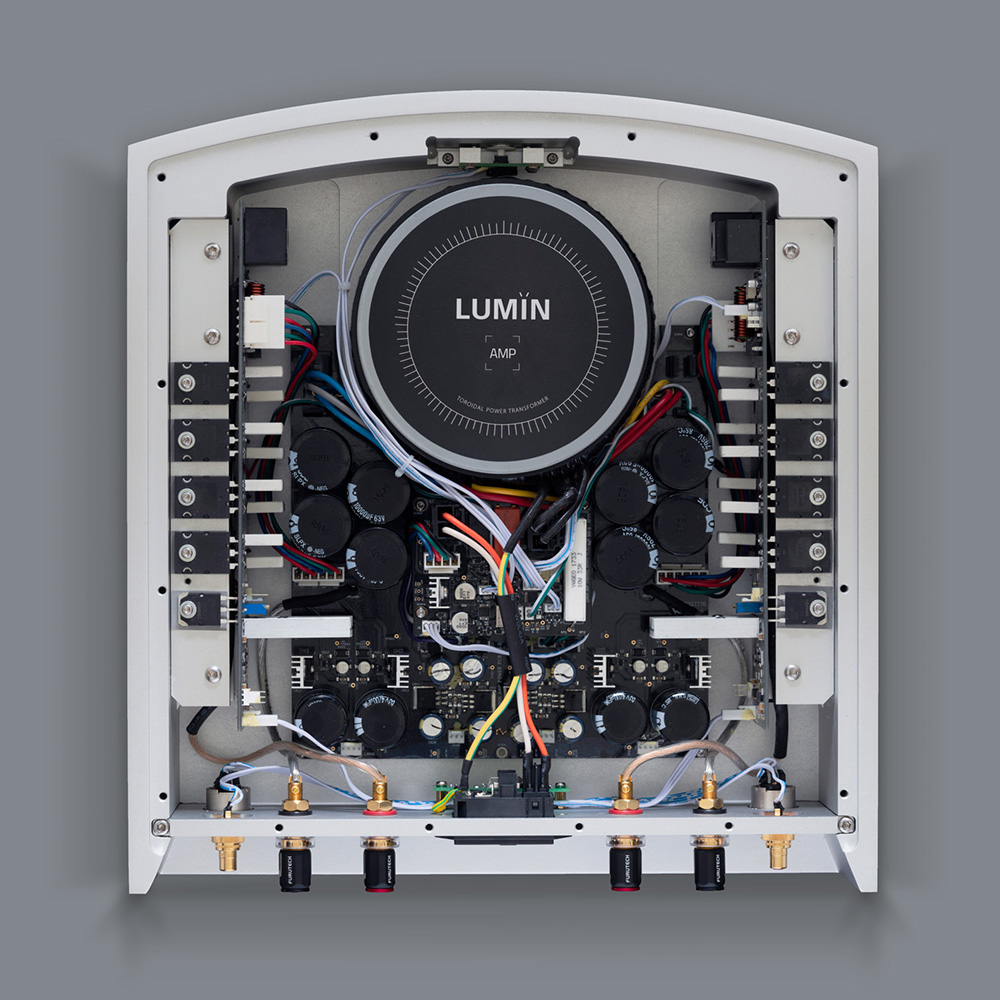

Lumin Class AB Stereo Amplifier
Featuring everything you need and nothing you don't, LUMIN Amp focuses purely on performance. If your LUMIN streamer sounded like a breath of fresh air, prepare to take it to the next level.
- Matched styling.
- Unmatched performance.
- Multi-Stage transistors amplifier
- Dual Mono power supply and amplifier design
- Fully discrete voltage and current gain stages
- DC-coupled signal path
- Class AB operation
- High input impedence and sensitivty for direct DAC drive
- Intelligent bias and thermal management
- Stereo / Dual Mono / Bridged operation
- CNC single billet aluminium construction
- 600VA custom toroidal transformer
- Built-in overload, overheat and DC protection
Lumin D3 Network Music Player
LUMIN D3 brings the audiophile potential of music streaming within everyone's reach.
Building on the success of our most popular and longest-standing model, LUMIN D3 inherits the Sabre DAC technology used throughout the rest of our range and combines it with our new all-aluminium compact chassis.
The latest LUMIN processor technology provides DSD256 upsampling and TIDAL Connect bringing audiophile-grade performance within your reach.
Main features
- Latest processor provides greater resampling flexibility
- New analogue output stage features Sabre DAC and a buffer including LUMIN X1 technology
- New DAC configuration featuring Sabre DAC ES9028PRO
- Retains fully balanced design including XLR outputs
- New surface finish taken from the high-end P1
- Upsampling and downsampling to every supported format up to DSD256/PCM384
- TIDAL Connect and Airplay 2 Compatible as well as Roon Ready, Spotify Connect, MQA, TIDAL, Qobuz, Plex and TuneIn
Lumin Infrared Control Package
After launching Leedh Processing for all LUMIN models, we were inundated with requests for a physical volume control from customers who were removing the preamplifier from their systems.
The result of our development is an Infrared Control Package compatible with all LUMIN models regardless of whether Leedh Processing is being used or not.
Precise tactile volume control and more...
Exceptional quality remote and IR sensor
Compatible with all LUMIN models*
No need to use the App for volume up / volume down / mute / play / pause / next / previous / shuffle / repeat or standby
Roon compatible
Particularly useful in systems without a preamplifier
* A spare rear panel USB port is required
Lumin L2 Network Music Server & Switch
The perfect partner for LUMIN owners who wish to store their own music collection!
The effortless operation of LUMIN L2 belies its advanced features and unrivalled flexibility.
With a 4-port audiophile-grade network switch on board, its two optical fibre SFP ports and two RJ45 copper ports L2 can streamline and enhance your network!
The ideal partner
- Available without drives or with 4TB or 8TB capacity
- Zero configuration required
- Automatically serves all added music
- Fibre Network provides complete isolation from network noise
- 4-port network switch simplifies cabling and makes fibre easy
- UPnP (Openhome) compatible
- USB 3.0 Micro type B for connection to computer
- SMB support for transferring over the network
- Gigabit Ethernet
- Thick-panelled CNC Aluminium construction
Lumin P1 Mini Network Music Player
Just like its bigger brother, P1 Mini is designed to be used as a streamer, a DAC, a pre-amplifier or all three!
With 5 analogue and digital inputs, a linear power supply and many other components taken from flagship players, LUMIN P1 Mini packs incredible versatility and value into its new slim chassis.
Main features
- Five inputs including USB, HDMI, SPDIF and Analogue
- HDMI with stereo input + AV Passthrough & ARC
- Dual DAC ES9028PRO
- DSD512 & PCM384
- Femto Clock System with precision FPGA distribution
- New internal toroidal linear power supply
- Dual Network with Optical Fibre Network support
- Leedh Processing lossless volume control
Lumin P1 Network Music Player
Lumin's most flexible player yet, LUMIN P1 is designed to sit right in the heart of your audio system.
LUMIN P1 makes system integration easier than ever:
- 9 digital & analogue inputs
- USB digital audio input & output support up to Native DSD512
- Balanced & unbalanced analogue inputs
- SPDIF & AES input support up to 192/24 & DoP
- HDMI 2.0 inputs & 4K passthrough with ARC support
Specified for exceptional musical performance:
- New processor delivers native DSD512 & PCM384 playback
- Dual Mono design throughout maximises channel separation
- Dual ES9028PRO SABRE DACs in Mono mode
- Femto Clock System with precision FPGA distribution
- New integrated dual-toroidal linear power supply & all-in-one chassis
- Fibre Network provides complete isolation from network digital noise
- Leedh Processing lossless volume control
