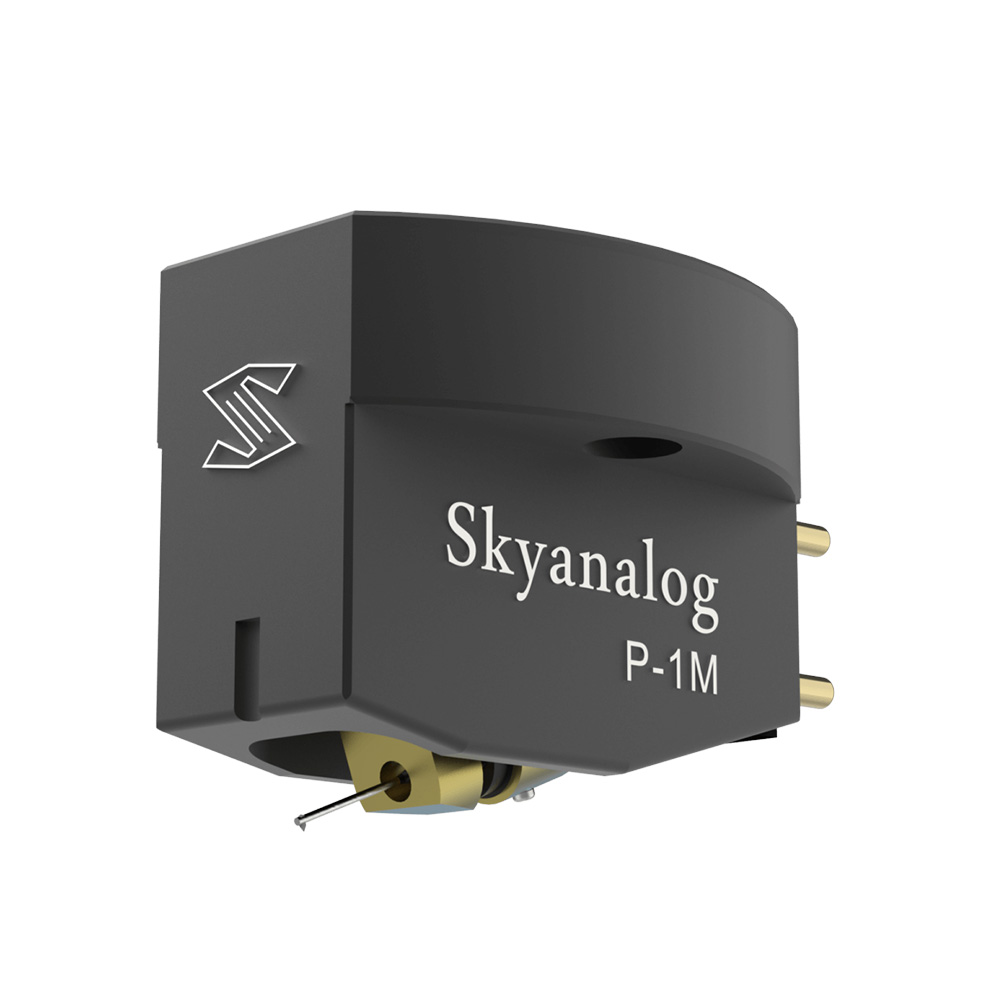

Skyanalog P1M Moving Coil Cartridge

The van’s break-in period is about 30 hours at an average temperature of 23 degrees. The pickup box also includes screws and an Allen key for easy installation.

Their sound is open, airy, flowing, yet pleasingly analog. Its full-bodied low-end doesn’t settle into the music, but at the same time follows the silky, well-articulated tonality of the midrange with appropriate rhythmicity. The high end is not especially bright, with an exaggerated character, but it has a sufficiently airy resolution, so that the jazz-acoustic genre is not a problem, as well as lighter pop-rock music.

To make the best possible use of the sound quality, it is worth pairing it with quality phono preamps.

• MC pickup – low signal output type
• Cantilever: Aluminum
• Needle point – diamond
• Needle profile – fineline
• Needle Nose Radius – 5x50uM
• VTA – 20 degrees
• Coil – pure copper cross wound
• Weight – 8.9g
• Output signal level: 0.4 mV at a velocity of 3.54 cm/s
• Internal resistance – 6.5ohm
• Recommended termination impedance – 100-220ohm
• Dynamic compliance – 12uM/mN
• Tracking capability at 315 Hz with 2 g – 80 uM stylus pressure
• Needle pressure limits – 1.6 – 2g
• Recommended stylus pressure: 1.8 g
• Recommended arm: medium weight (11-14 g effective weight)
• Filming period: 30 h
• Skyanalog give no warranty to broken cantilever or diamond.
