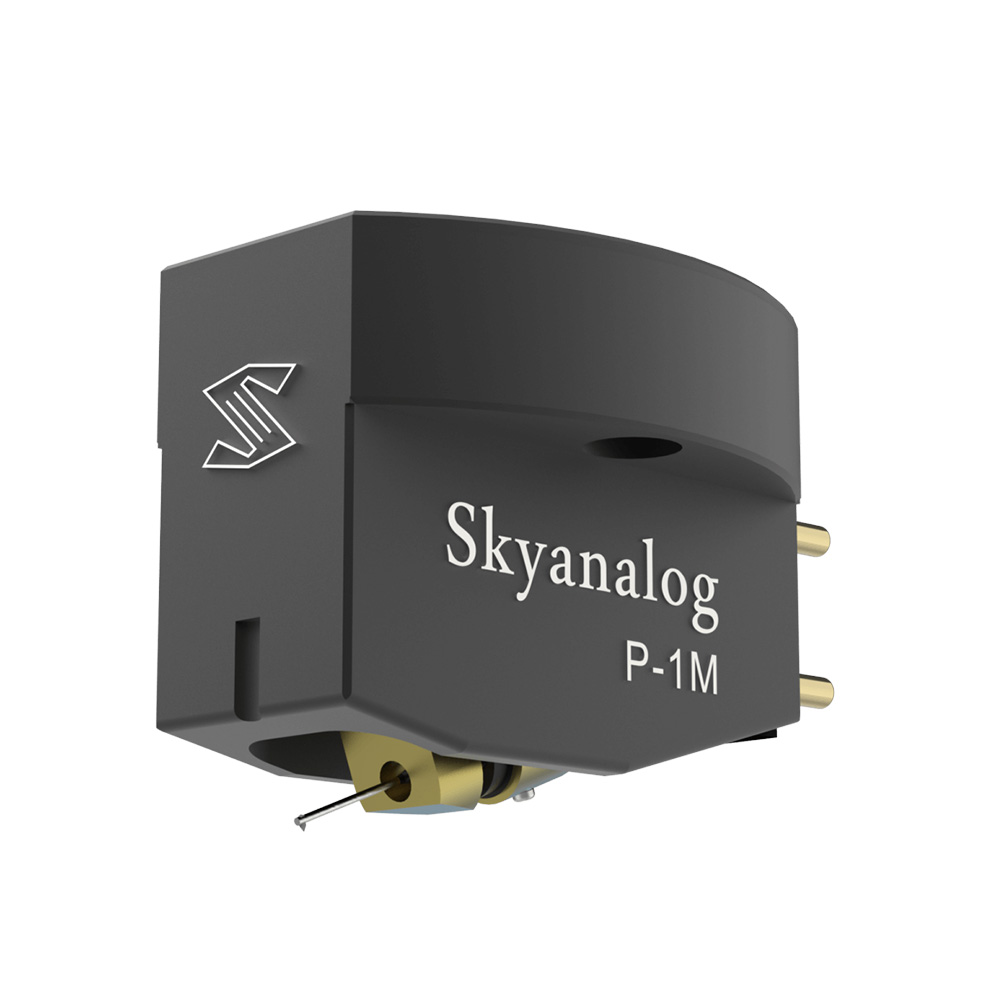

Skyanalog P1M Moving Coil Cartridge

Name: Skyanalog P1M Moving Coil Cartridge
Brand: Skyanalog
SKU: P1MMC
Availability: InStock

£349.00

Rich information playback with dynamic performance offers clarity and transparency for music lovers, with affordable price

In stock

Add to wishlist

SKU: P1MMC Categories: Cartridges, Vinyl Essentials Tags: MC, Moving Coil Cartridges, P1, Skyanalog

Description

MODEL P-1M SPECIFICATIONS

PHYSICAL
Cantilever	ALUMINUM
Stylus	Diamond
Stylus Tip Radius	r/R=5/15uM
Coil	Pure Iron Cross Coil
Weight	10 grams
ELECTRICAL
Output Voltage	0.4 V @ 3.54 cm/s
Internal Impedance	5 Ω
Frequency Respons	20 – 20.000 Hz +/- 2 dB
Channel Separation	˃ 30 dB at 1 kHz
Channel Balance	< 1.0 dB
DYNAMIC
Tracking Ability @ 315 Hz / 2 grams	70 µm
Dynamic Compliance	15 µm / mN
SETUP INSTRUCTION
Recommended Load	200 – 470 Ω
Recommended Tracking Force	1.1 – 1.5 grams
Optimum Tracking Force	1.35 grams
Recommended Tonearm Mass	Medium
Optimum Working Temperature	23 ˚C
Break-In Period	30 hours
