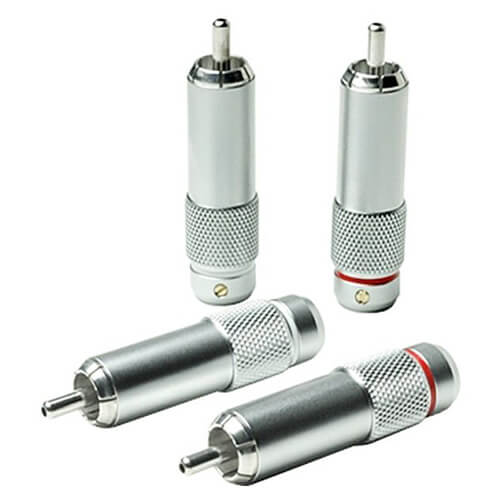

Oyaide Genesis RCA Connectors, Set of 4

The Oyaide range of RCA and XLR connectors undergo attention to detail like no other in the hi-fi industry.

“These connectors are not merely high grade; every step is taken to realise ‘State of the Art’ audio” say Oyaide themselves.

“Every one of our products is totally ‘made in Japan’, even down to the most minute component; all so we can maintain our high standard of quality and reliability. It is essential to have every production system under our direct and strict control. Our products are for a special and demanding market, where minute vibration from a loose connection or due to imperfect choice of material could become a vital failure. We carefully design each and every component for ease of assembling, simplicity and safety. We carefully select materials for superior sound quality, durability and reliability. For that requirement, cost factor is secondary. We are proud to present true value-for-money products for your enjoyment.

The Genesis is our original RCA plug design, with the addition of our new collet-chuck clamping device. This newly improved collet-chuck structure, which is placed on the lower middle of the sleeve, actualises secure holding to the connection part due to its independence from the outer sleeve. In addition, because of the coating of high-viscosity grease on the screw part, you will never have felt smooth rotation like this before. This not only gives pleasure to the touch, but also improves vibration damping between the inner body and the outer sleeve.

The surface of its brass sleeve is treated by hard chromate-plating, like in high-quality cameras. In addition, we employed a phosphor bronze contact pin. And we applied our new combination of platinum and rhodium-plating for this highly-original RCA plug. This combination sets a new standard of sound for the audiophile. Furthermore, all fine parts are shaped by a highly accurate CNC routing machine.

The improved Genesis brings the higher standard of architectural quality to the existing design of the RCA connectors.

The collet-chuck clamping function:

The collet-chuck clamping function is employed for Genesis. An existing collet-chuck designed RCA plug is tightened by rotating its whole sleeve, but Genesis is tightened through its independent rocking sleeve. Here, we succeeded to minimise the gap between its body and sleeve and attenuate resonance, which was a problem with the original collet-check structure.

Body:

High-viscosity grease is coated on the screw part of the rocking sleeve and body. Due to its high-viscosity, it actualises to prevent looseness and damp unnecessary vibrations. In addition, each screw thread of the rocking sleeve and end cap has a different pitch and opposite screw turn for tightness.

Usability:

Its collet-chuck rocking sleeve is placed on the lower middle of the sleeve. So it is easy to turn, even if it is in the situation where it seems to be hard to rotate.

Specification:-

Materials

Contact : Phosphor bronze
Insert resin : Teflon（PTFE）
Outer shell : Copper alloy（RoHS Compliant）
Cable clamp : Copper alloy（RoHS Compliant）

Platings

Contact pin : Platinum ＋ Rhodium
Body : Platinum ＋ Rhodium
Outer shell : Hard chrome

Connection: Soldering

Install O.D: ～9.0mm
Package: 4 pieces in a box
