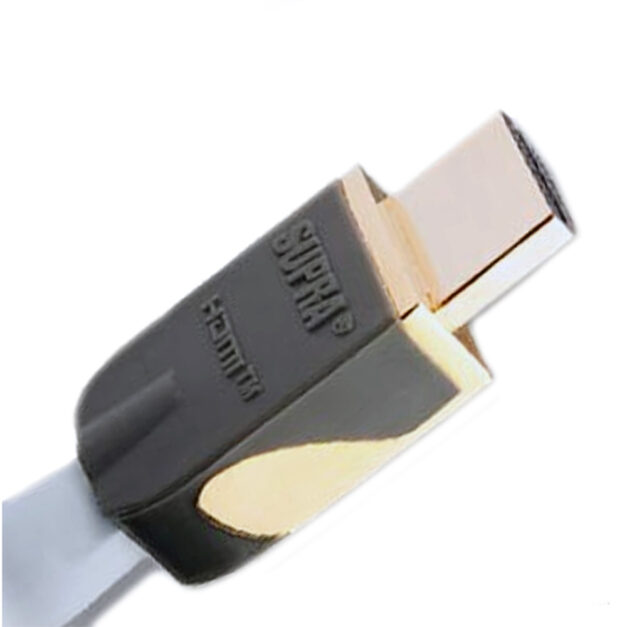

Supra HD5 Standard High Speed HDMI with Ethernet Cable

HIGH RESOLUTION PICTURE AND SOUND

We often meet scepticism when we talk about HDMI cables. ”Does it really matter?” ”I mean, it’s only a data stream? Yes, it is a stream of digital bits. Yes, it does matter. Unfortunately there is an intermediate state before the signal is so corrupt it cannot be read and blanks out. Many claim that if the screen shows, the signal is good enough. There is circuitry in the receiver which tries to repair broken data stream by buffering and error correction, but this is based on best possible estimates and is not necessarily what was sent. You might experience sync problems (delays), distorted colorations, insufficient blackness, noise and unexplainable audible pops during which the hardware is working overtime trying to repair the fragile bitstream. Do your precious hardware the best possible favour you can by connecting it using SUPRA HDMI cables and both you and your equipment will fully enjoy the show.

FEATURES:

Transmits today’s challenging formats flawlessly
Future proof – Meets today’s HDMI standard and known requirements of tomorrow
Sturdy design – Withstand the normal installation abuse
23AWG leads – For minimum losses
Triple screen technology – Provides for long distance clearance hence freedom of installation with maintained signal integrity
Made in Sweden, three step quality plan – Unsurpassed quality and reliability

SPECIFICATIONS

• Signal Bandwidth: 340 MHz
• TMDS Bandwidth: 10.2 Gbit/s
• Colour Depth: 48 bit/px
• 4K x 2K Resolution support: Enables video resolutions far beyond 1080p. 3840 x 2160 24Hz/25Hz/30Hz 4096 x 2160 24Hz
• Deep Colour, x.v.Colour
• Auto Lip Sync
• Dolby TrueHD, DT-HD Master Audio
• 3D over HDMI
• Audio Return Channel
• Ethernet Channel
• Standard HDMI 2.0, High speed with ethernet
• Connection Config: Single-Link
• Connectors: HDMI-HDMI
• Application Examples: DVD/Projector/TV
• Max Resolution: 4K
• Solder Tin: Almit SR-34 Super
• Cable clamping: Molded
• Cross section Area: 5xTMDS 0.26/23 (mm2/AWG)
• Wire Material: Solid OFC
• Insulation: PE Foam
• Inner Screen, Coverage: Alu/PET Foil, 100%
• Comm. Conductors: 5xAWG 26 PE
• Outer Screen, Coverage: Alu/PET Foil & Braid, 100%
• Jacket: Heat & Ageing Resistant PVC
• Cable diameter: 9.5 (mm)
• Resistance: 82 (Ohm/km)
• Capacitance: 42 (pF/m)
• Char. Impedance: 100 (Ohm)
• Velocity Factor 0.8c
