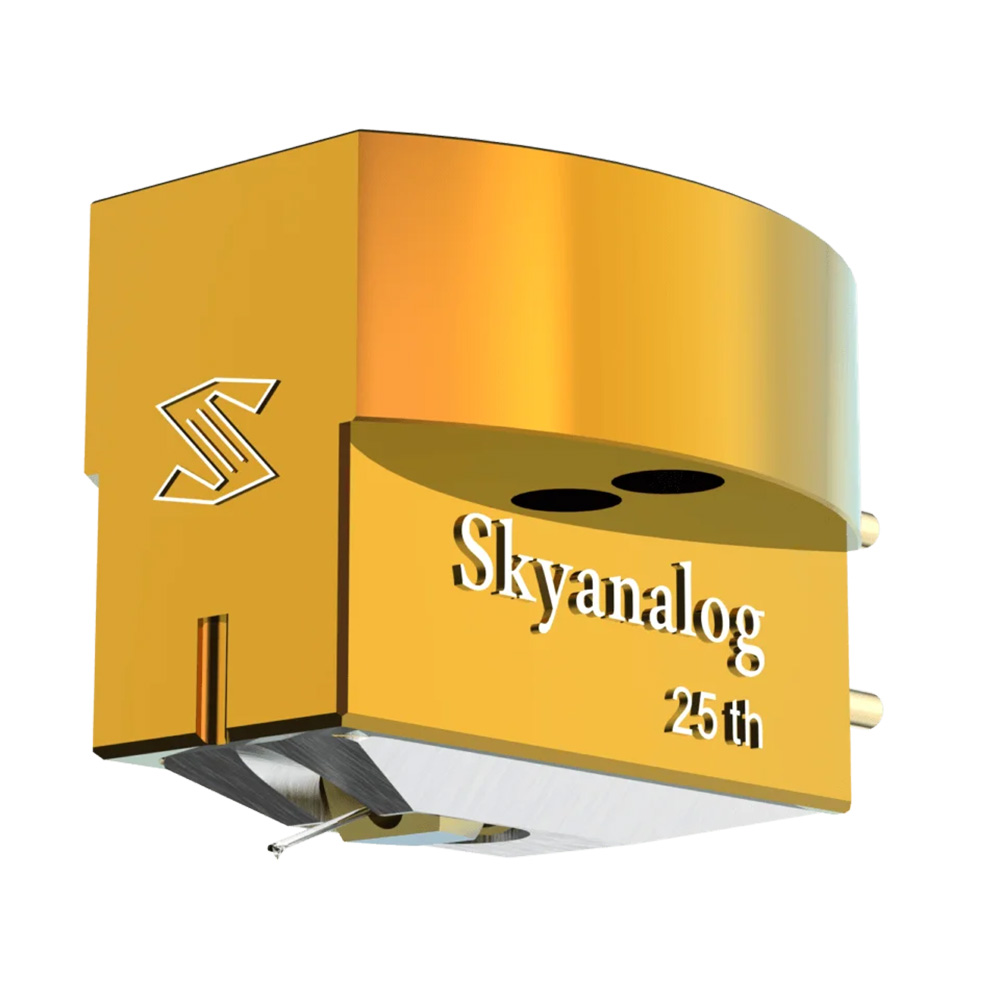

Skyanalog 25th Anniversary Edition – Moving Coil Cartridge

Skyanalog 25th Anniversary Edition – Moving Coil Cartridge

Physical Specifications

• Cantilever: Diamond
• Stylus: Micro Ridge
• Stylus Tip Radius: R/R=3/80Um
• Vta: 20 Degrees
• Coil: Pure Iron Square Coil
• Weight: 10.7 Grams

Electrical Specifications

• Output Voltage: 0.35Mv At 3.54Cm/S
• Internal Impedance: 5 Ohms
• Frequency Response: 20 – 30,000Hz +/-1Db
• Channel Separation: Better Than 35Db At 1Khz
• Channel Balance: Better Than 0.5Db

Dynamic Specifications

• Tracking Ability At 315 Hz At Optimum Tracking Force: 80Um
• Dynamic Compliance: 15Um/Mn

Setup Instructions

• Recommended Loading: 100-330 Ohms
• Recommended Tracking Force: 1.0-1.6Grams
• Optimum Tracking Force: 1.3Grams
• Recommended Tonearm Mass: Medium
• Optimum Working Temperature: 23°C
• Break-In Period: 30 Hours
