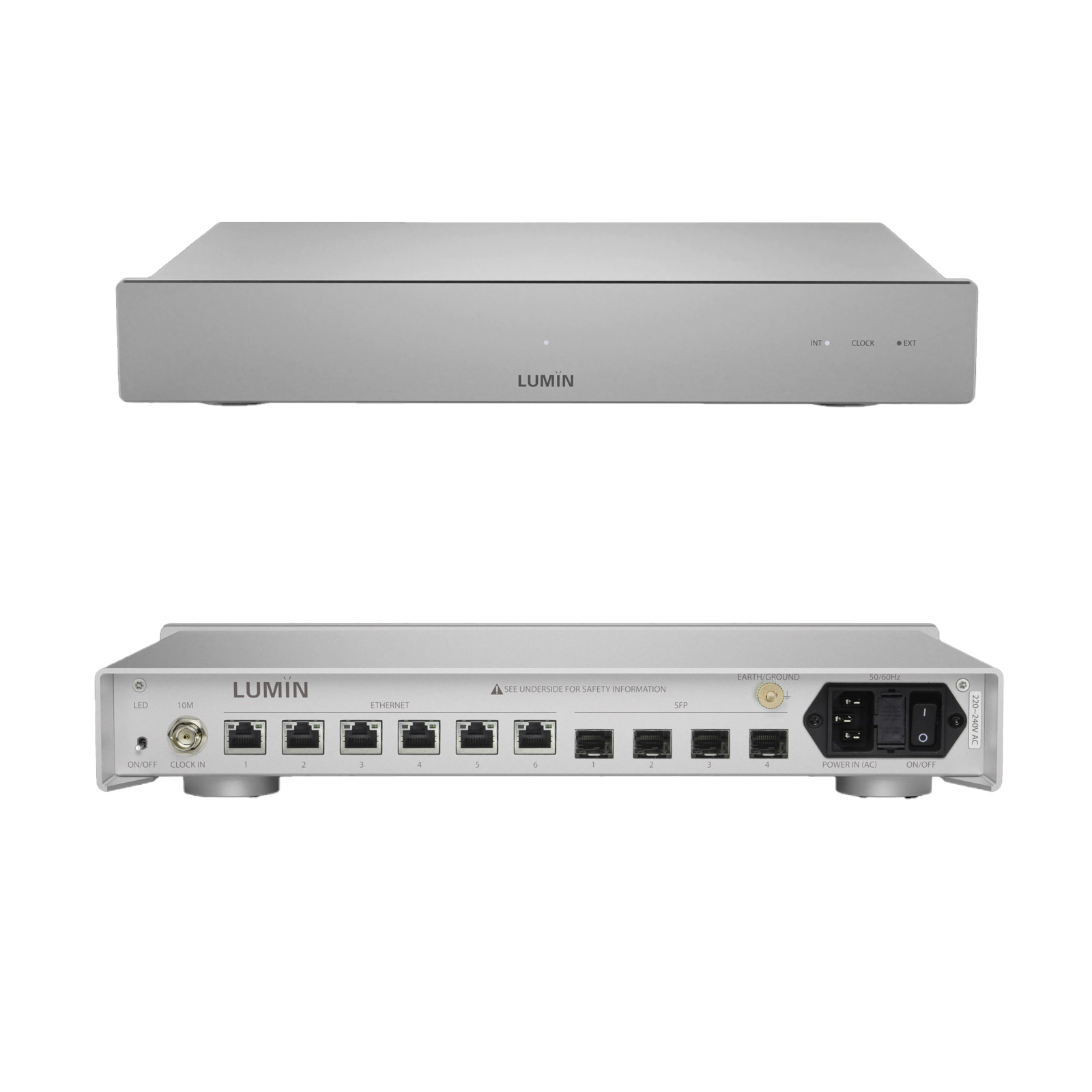

Lumin N1 Flagship Audiophile Network Switch

A noise-free foundation for your network

6x Copper RJ45 ports and 4x Fibre SFP ports for massive system flexibility and complete electrical isolation for the most sensitive equipment
10M External Clock Input allows for synchronisation with either LUMIN U2X or an external master clock for absolute timing accuracy
Internal Linear Power Supply featuring an extra-large toroidal transformer
Zero configuration required
Aluminium chassis construction based on D3 and U2 Mini
Available in the same anodised black or raw silver finishes as the rest of the LUMIN range.

10-port flexibility

4x Fibre SFP ports allow optical fibre networking input and output, completely electrically isolating your sensitive hi-fi components from the rest of your network.

6x Copper RJ45 ports provide the flexibility and convenience of connecting all your equipment to the same hub avoiding cheap (and electrically noisy) consumer switches around your hi-fi and providing rock-solid wired connections for maximum stability.

Internal ultra-low-noise linear power supply

Derived directly from our award-winning U2 and T3X, this extra large toroidal transformer continues the low-noise focus that is found throughout LUMIN N1.

Unlike standard network switches that rely on noisy external adapters, LUMIN N1 houses its high-performance linear power stage within a shielded compartment to ensure zero interference with delicate network signals.

External 10M Clock input

While LUMIN N1 features a high-stability internal clock, the 10MHz BNC input allows synchronisation with an external master clock.

Ideal for use with clock output from LUMIN U2X or a 3rd party master clock, this synchronisation can provide system-wide coherence, operating on a low-jitter, unified timing reference.

Lumin N1 Specification

Included In The Box:

• LUMIN N1 Network Switch
• Power Cable (IEC cable for your country’s power supply)
• 2x SFP LC Modules
• Optical Network Cable
• RJ45 Ethernet Cable
• Quickstart Guide
• Safety Information
• NETWORK CONNECTIONS:
• 6x Gigabit Ethernet Network (1000BASE-T) RJ45
• 4x Industry-standard Gigabit SFP
• 10M CLOCK INPUT:
• 50 Ohms on BNC

POWER SUPPLY:

• Internal toroidal linear
• Low-noise linear regulator
• Shielded power supply compartment for reduced interference with delicate electronics

FINISH:

• Black anodised aluminium
• Raw anodised aluminium

DIMENSIONS

• 360mm (W), 236.5mm (D), 60.5mm (H), 2.5kg
