MCRU have available the very latest technology in mains power cable from Furutech of Japan. Sold per metre for DIY. Supplied in one continual length so if you purchase qty 5 you will receive a 5 metre length.
Alpha Pure Copper-Continuous Crystal Construction
Furutech’s α (Alpha) PC-Triple C is one of a select few of conductors that Furutech engineers have found to excel in sound reproduction. α (Alpha) PC-Triple C is made with Furukawa high-purity oxygen-free copper using a special forging process. Unlike regular OFC (oxygen-free copper), almost all of the impurities of this high-purity OFC have been removed at the micron level through a special casting process unique to Furukawa.
Purposely designed and developed for audio signal conductors, α (Alpha) PC-Triple C is flexible, strong and can be drawn into a very fine wire. This new conductor, while not single-crystal like PCOCC, features crystal grain boundaries that are almost totally free of impurities which allows even the smallest of signals to be transmitted. While PCOCC is a single-crystal conductor, it is susceptible to imperfections during production. Since α (Alpha) PC-Triple C employs a fixed angle continuous transport forging process, pressure is applied to the high-purity oxygen-free copper tens of thousands times. This ensures that any crystal grain boundaries that were present in a vertical direction become longitudinal, and the crystals become connected and uniform in their direction. This process also helps to remove the imperfections that are often found in PCOCC, which create a more conductive and acoustic conductor.
The resulting conductor has an extremely fine resolution down and through the very low noise floor, improved sound staging and image palpability, a musical, attractive, “round” midrange, tight and controlled bass, plus power and dynamics to spare to set your music on fire!

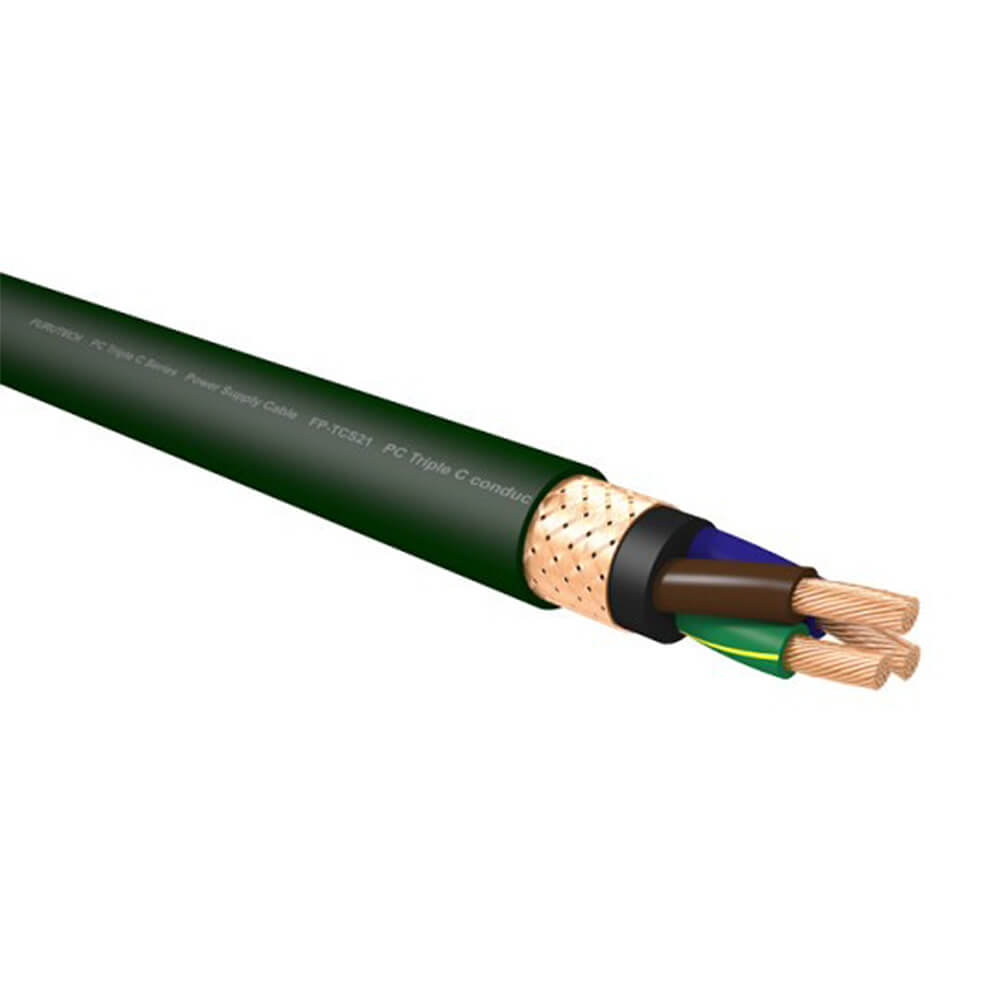

Alpha PC Triple C conductor: diameter 1.9mm (14 AWG)
– Insulation: Special grade Flexible PVC (Brown, Light Blue, Green/Yellow) diameter 3.5mm
– Inner Sheath: Special grade Flexible PVC (Black) diameter 9.2mm
– Shield: 0.12mm OFC Wire Braid
– Outer Sheath: Flexible PVC (Dark Green) diameter 12.8mm
Characteristics
1. Purity > 99.996%
2. Conductivity (EC)≒101.5 IACS%
3. Tensile strength (TS) ≒250 MPa
4. Elasticity (E) ≒35% Wire (1.3mmΦ)
PLEASE NOTE THIS CABLE IS SUPPLIED IN 30 METRE REELS, IF YOU WANT A LONGER LENGTH THAN 30 METRES IT CAN BE SPECIALLY ORDERED
Cable off the Reel
Acrolink 7N-PC4020 Leggenda Mains Power Cable for DIY (PER MTR)
- 7N DUCC COPPER
- FOIL SHIELDED
- SOLD PER METRE
- DATA SHEET HERE
Acrolink 7N-PC4030 Leggenda CB Power Cable Per Metre
- Japanese craftsmanship comes to cables!
- Acrolink 7N purity mains cable per metre off the reel for DIY power leads.
- Stressfree 99.99999% Purity Copper
- NEW DESIGN spec. sheet here
Acrolink 7N-PC4030 Leggenda Power Cable per 1/2 Metre for DIY
- Japanese craftsmanship comes to cables!
- Acrolink 7N purity mains cable per 1/2 metre off the reel for DIY power leads.
- NEW DESIGN spec. sheet here
Acrolink 7N-S1010 Leggenda Speaker Cable Per Metre
Price is per metre length
Such a technology as attaining maximum purity in raw materials is an important technology that has maintained the high levels of Japanese industrial technologies, and creates certain items that can only be manufactured in Japan. A real image of music emerges relatively by minimizing the noise level. The expressiveness, speed, and volume of the overtones that extend downward in the low-pitched music instrument. A vivid sense of reality and a sense of fulfillment that makes it possible to see the realistic vibrations of musical instruments across genres. Global standards will be inherited by the new 7N-S1010 Leggenda.
