Name: Clearaudio Smart V2 MM/MC Phono Preamplifier - Black
Brand: Clearaudio
SKU: EL027/B
Price: 453.33 GBP
Availability: InStock

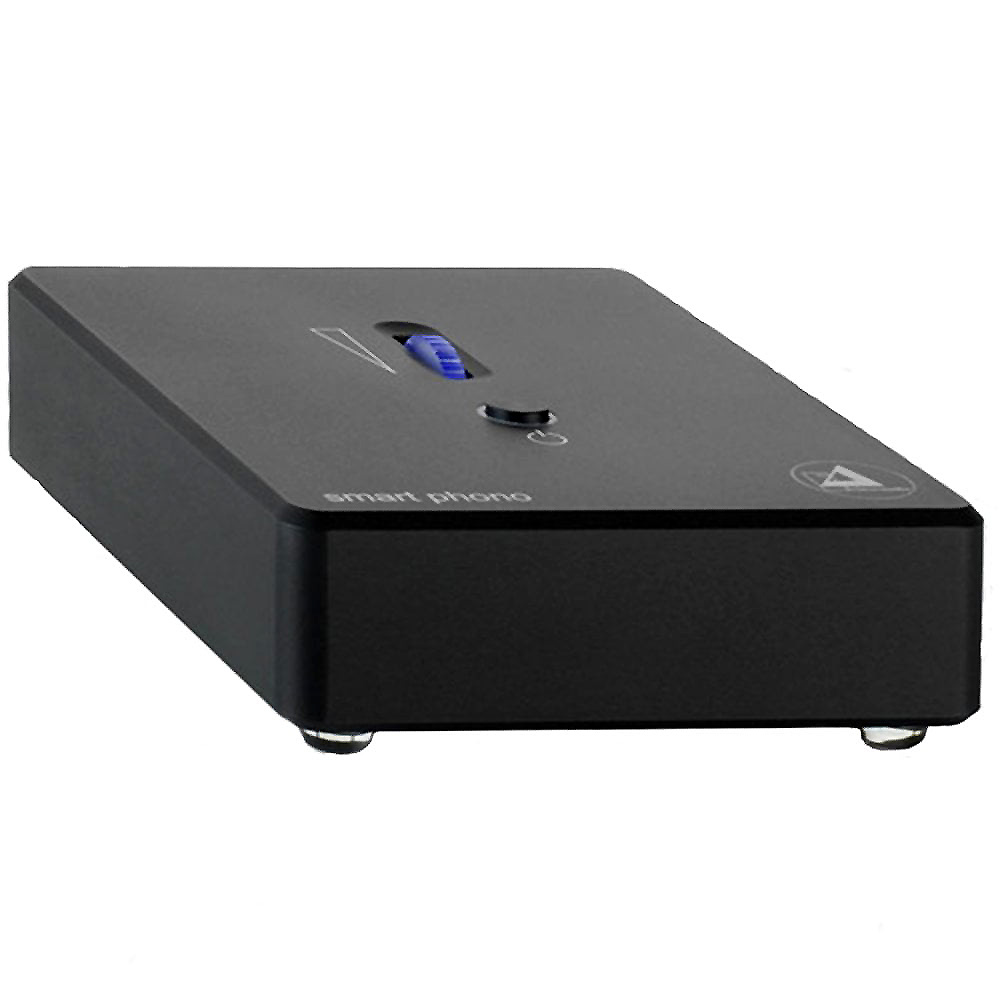

Clearaudio Smart V2 MM/MC Phono Preamplifier – Black

A light 620-gram phonostage that seduced the worldwide audio press. The only thing that is ‘entry level’ about this product is its price.

A minimalist aluminium housing that contains one of the best sounding phonostages in its market. Up to 54 decibels gain at one kilohertz and an extremely linear frequency response deliver unprecedented quality at this price point.

For MM and MC cartridges there are two separate circuit designs using SMD technology, which are selected by a slide switch on the underside.

In stock

Technical Specifications:

Amplification @ 1 kHz: 54 – 68 dB (MC mode) / 34 – 48 dB (MM mode)
Input Impedance: 50 Ohm, 100 Ohm, 500 Ohm, 1 kOhm, 5 kOhm / 150 pF, 250 pF, 400 pF / MC mode / 47 kOhm / 150 pF, 250 pF, 400 pF / MM mode
MM / MC Input: switchable (at bottom)
Subsonic Filter: switchable (at bottom)
RIAA: delay time: 75 μs / 318 μs / 3180 μs
RIAA Accuracy: ± 0.3 dB @ 10 Hz – 100 kHz
THD: < 0,004% MC (“A” weighted @ 1 kHz / -1 dB @ Max)
Headroom: 18 dB / MC (Gain Control on MAX)
Signal To Noise Ratio: 72 dB / MC (“A” Weighted) / 85 dB / MM (“A” Weighted)
Channel Separation: > 90 dB @ 1 kHz / opposed channel hot-wired
Max. Output Voltage: 10 V eff. (1 kHz)
Power Supply: ± 18 V DC / 300 mA (external power supply)
Output Sonnections: unbalanced (RCA)
Power Consumption: Max. consumption: 2.7 Watt / Consumption in operation: 2.7 Watt / Off mode: 0.0 Watt
Total Weight: Approx. 600 gram (Preamp and power supply)
Dimensions (W/D/H in inches): 3.74 x 4.92 x 1.34
Dimensions (W/D/H in mm): 95 x 125 x 34
Warranty: 3 years*

* Only if the Manufacturer’s guarantee card is filled out correctly and sent back within 2 weeks to Clearaudio.
