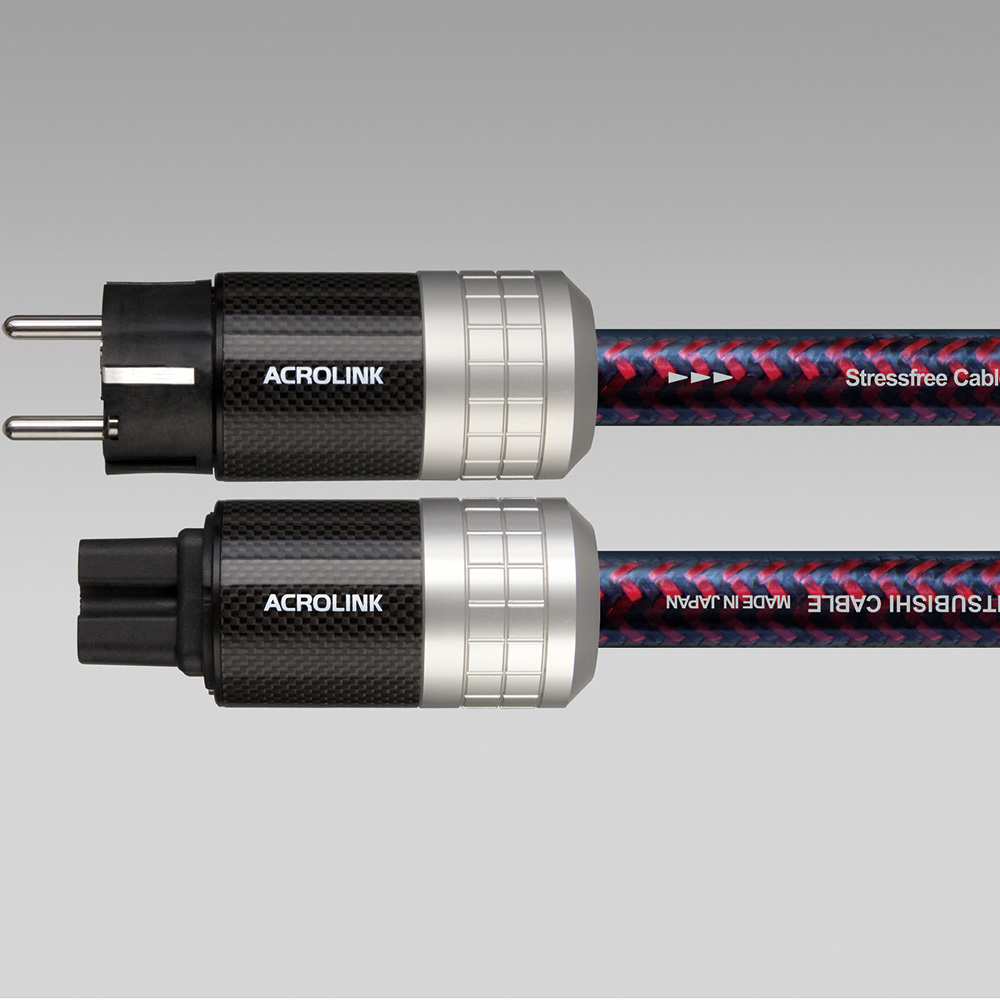

Acrolink 7N-PC9900 Mexcel Schuko Mains Lead

Specifications

• Conductor     :     7N Stressfree D.U.C.C MEXCEL 0.32ø x 50 strands
• Insulation     :     High molecular polyolefin
• 1st sleeve     :     Hybrid high molecular polyolefin (Tungsten + amorphous + carbon powder)
• 2nd sleeve     :     High molecular polyolefin with resonance control powder
• Shielding     :     Noise beat tape + Braided UEW
• Outer sleeve     :     UV resistant polyurethane
• Conductor resistance     :     2.0 mΩ/m
• Electrostatic capacitance     :     10 pF/m
• Cable diameter     :     16.0 mm

Power plug & IEC connector

• Contact parts     :     Beryllium copper
• Plating     :     Silver layered rhodium (Polished before plating)
• Chassis     :     Polybutyleneterephtalate with 30% glass fiber
• Body     :     Resonance controlled resin + brass + carbon fiber + aluminum

Standard length is 1.5m
