Specifications
- Conductor : 7N Cu D.U.C.C Stressfree 0.37Φ x 50 strands x 2 cores(AWG 10)
- 5N Cu for ground 0.37Φ x 50 strands(AWG 10)
- Insulation material : High molecular Polyolefin Resin(Black & White & Green)
- 1st Inner sleeve : High molecular Polyolefin + tungsten + amorphous + carbon powder
- 2nd Inner sleeve : Polyolefin with Resonance control powder
- Final shielding : Polyurethane enameled wire(Black) + Silver plated copper(Silver) braided wire
- Outer sleeve : UV resistant Polyurethane
- Conductor resistance : 3.3mΩ/m
- Cable diameter : 16.0mm

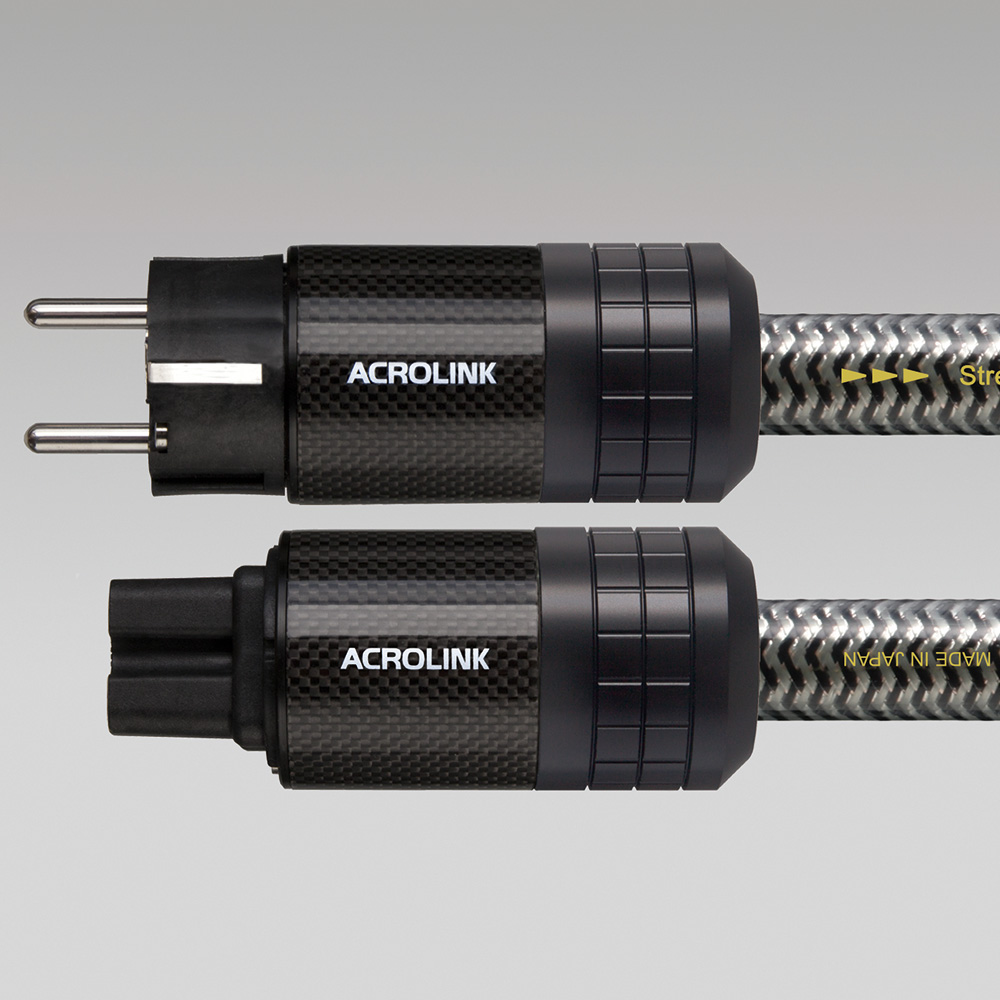

Power plug & IEC connector
- Contact parts : Beryllium copper
- Plating : Silver layered rhodium(polished before plating)
- Body : Special resin + brass + carbon fiber + aluminum
- Black anodized aluminum specially for 7N-PC8100 Leggenda
Standard length of 7N-PC8100 Leggenda is 1.5m.
