Name: Reed 1H Tonearm
Brand: Reed
SKU: 344984
Price: 2579.17 GBP
Availability: InStock

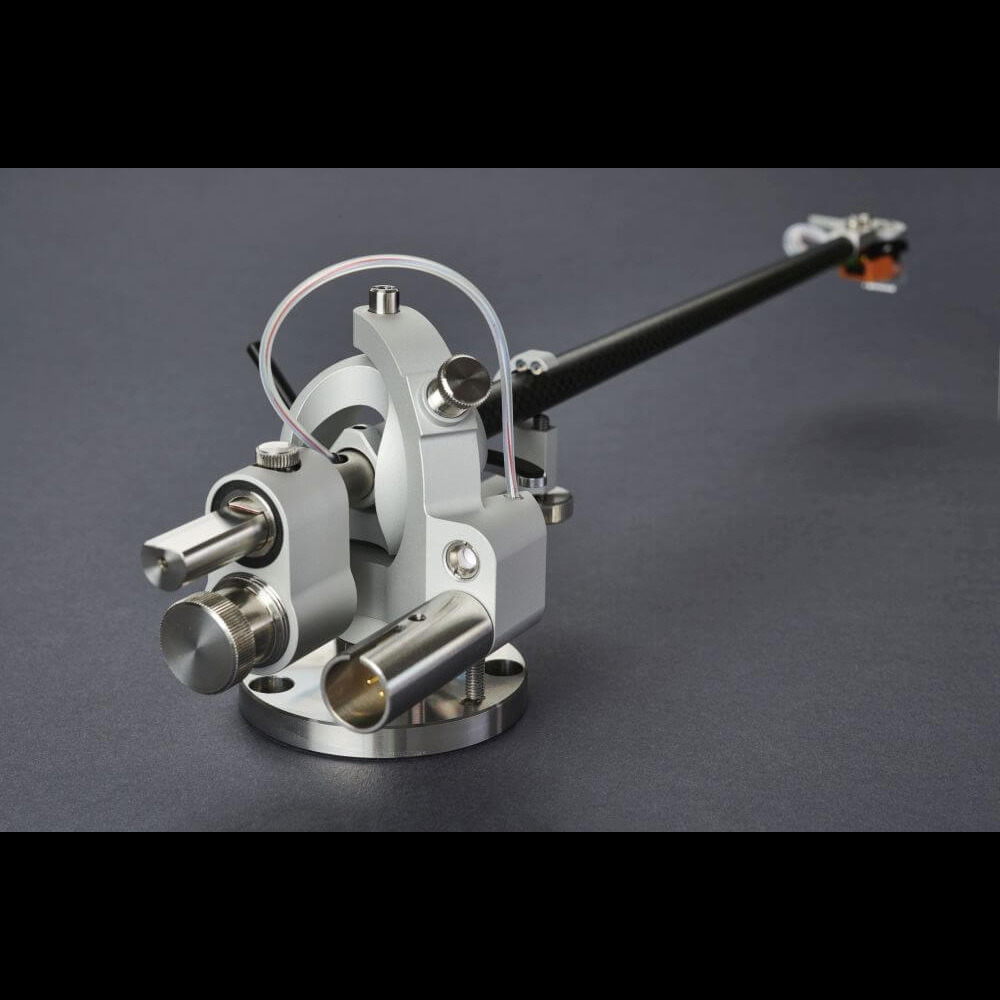

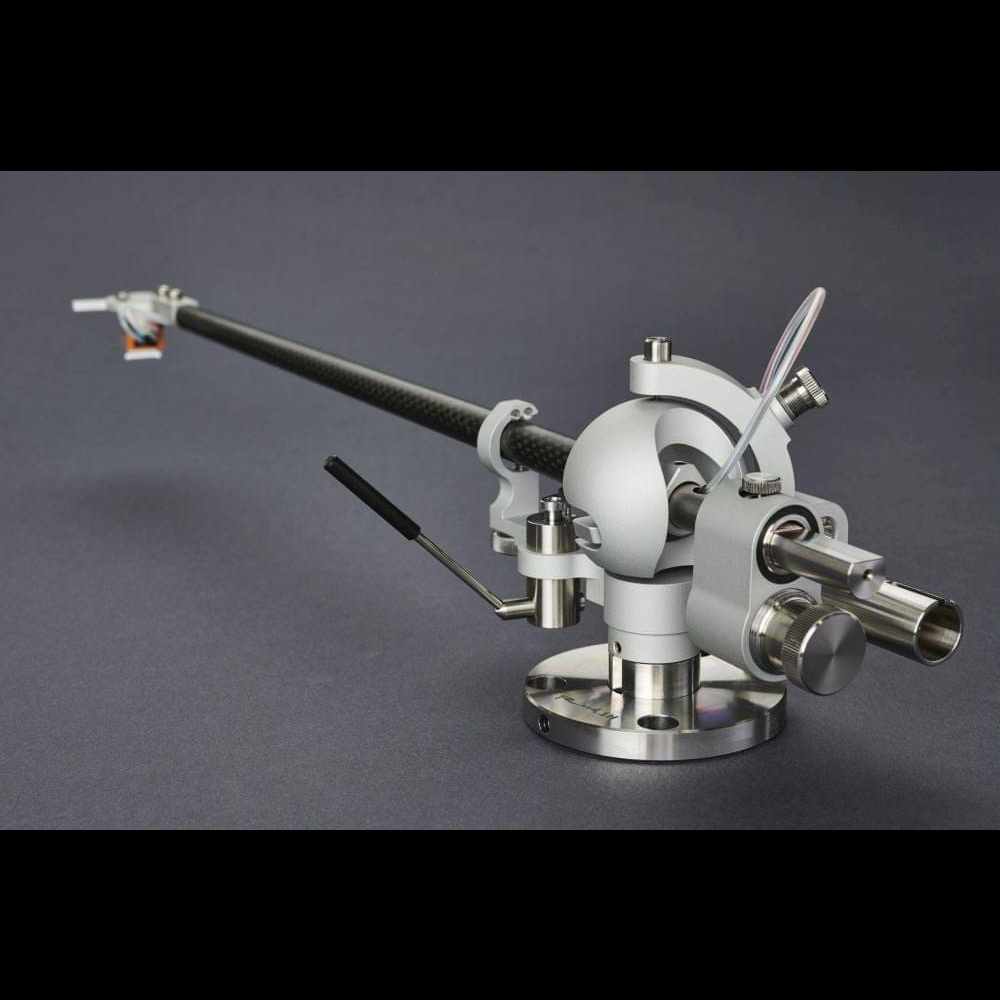

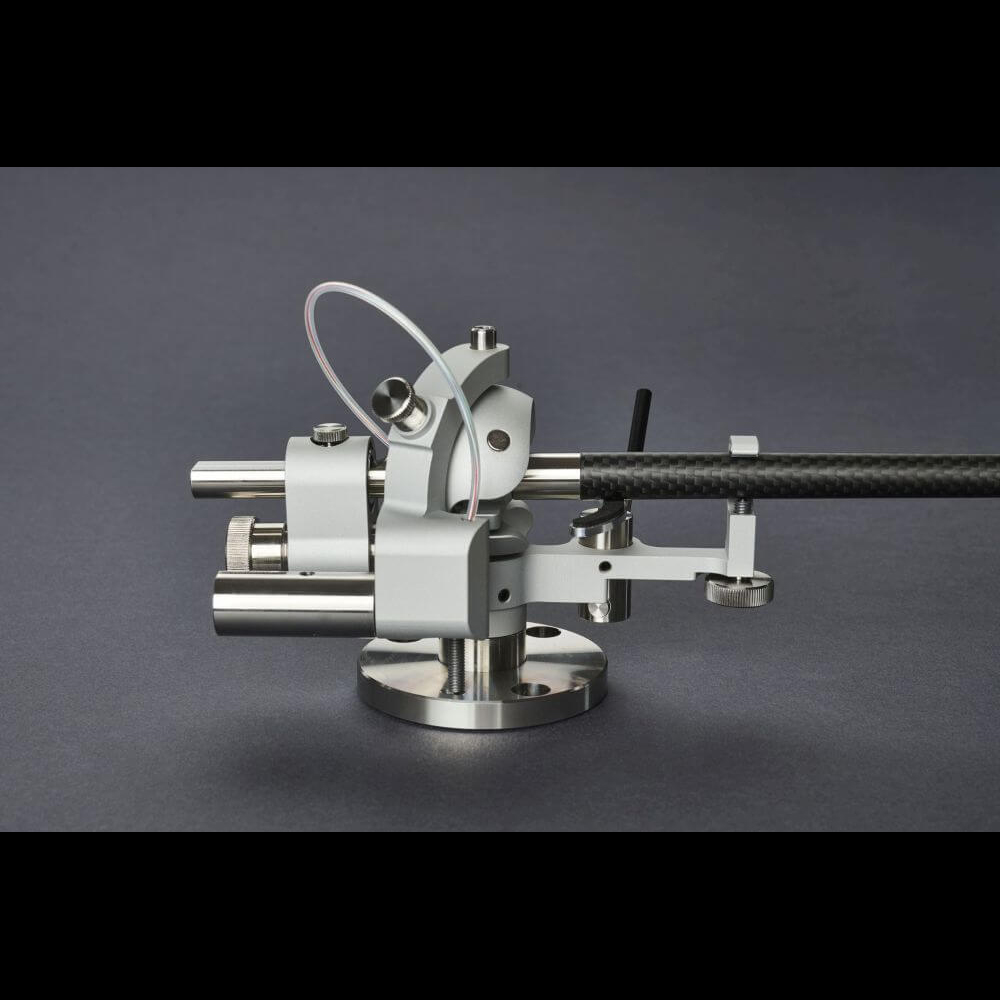

Reed 1H Tonearm

£3,095.00

Starts at £2500, please get in touch to discuss your requirements and pricing.

(available in 9.5″ 10.5″ and 12″)

Reed 1H is the latest addition to Reed’s entry level tonearm series. And, for the first time, they introduce carbon fiber as the Reed 1H’s arm wand material.

After thorough research Reed found a way to make the carbon fiber arm wand’s acoustic properties close to ones that normally are typical for the wood.

By using soft wood to damp the carbon fiber tube, Reed’s new arm wand’s acoustic properties become considerably better than using carbon fiber alone, and can be compared to wooden arm wands.

Manufacturer’s website

REED 1H Tonearm Specifications

Reed 1H has a cardanic bearing system: vertical axis has thrust rotation bearings and horizontal axis is based on thrust pivot bearings (same concept as in Reed 3P). Such bearing construction eliminates wobbling of a bearing, which has a great impact on the quality of the sound.

Among other features, Reed 1H tonearm has azimuth adjustment, replaceable headshell and VTA adjustment. Tonearm height adjustment range is from 28mm to 48 mm. It is also easily tuned and can be mounted on most turntables out of the box or using an adapter.

Tonearm signal output is either 5 pin-DIN connector or Finewire 37 cables.

Antiskating: magnetic, similar to the one used in Reed 3P.

SPECIFICATIONS

Effective length	9.5″	10.5″	12″
Mounting distance, mm	223	251.6	295.6
Pivot to spindle distance, mm	223	251.6	295.6
Overhang, mm	17	15.4	13.4
Offset angle, deg	22.9	20.7	17.6
