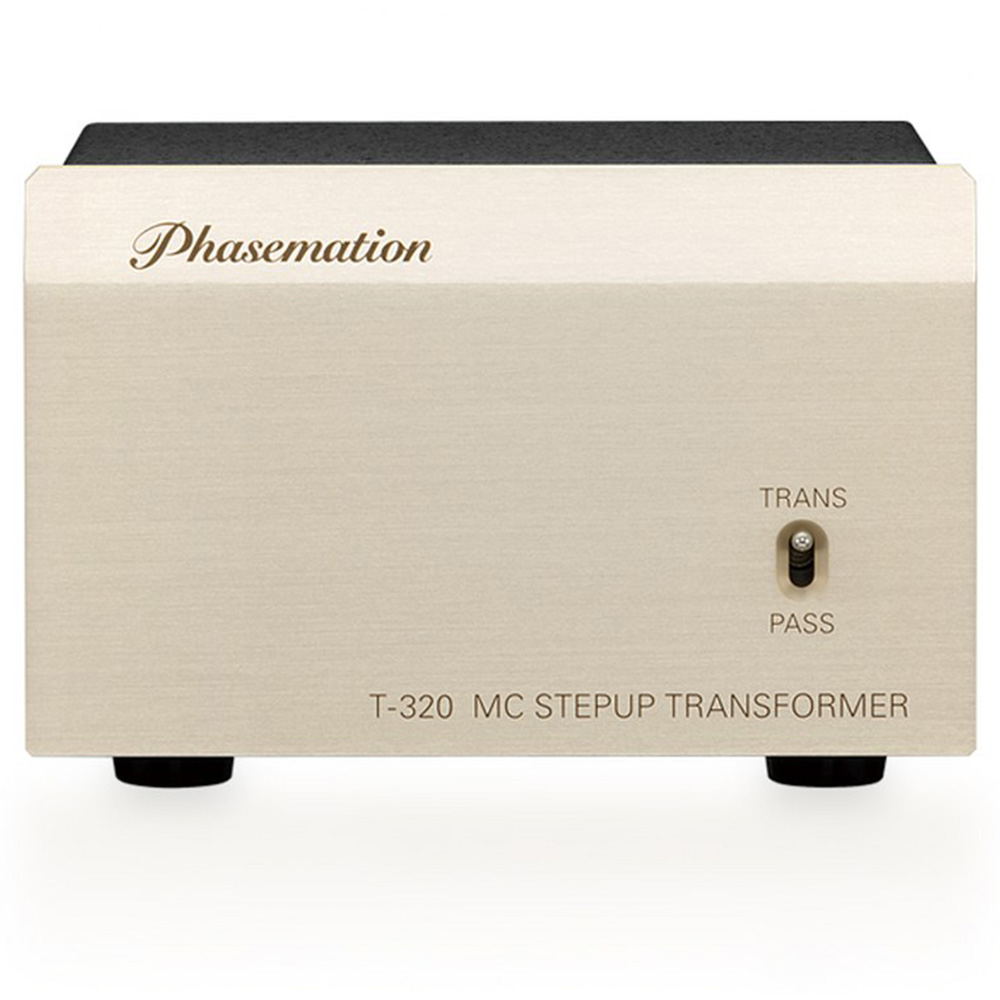

Phasemation T-320 MC Step-Up Transformer

I. Adopting a strong chassis structure that follows the T-550 design
The front panel is a rigid box structure having a 10mm thick slanted aluminum panel, a 1.2mm thick copper plating board chassis and a 1.2mm thick copper plating cover. Non-magnetic stainless steel screws are used for assembly to ensure rigidity and reduce magnetic distortion.

Ⅱ. MC step-up transformer due to a special split winding structure developed by us.

We adopted our original divided winding wire structure. By winding a low-loss ultra-thick copper wire around a large EI core made of a 0.2mm thick 78% permalloy material, we brought into effect an outstanding frequency characteristic and phase characteristic at a wide band. This achieves outstanding characteristics of excellent linearity for low frequency and high-efficiency gain which reduces phase distortion in the audible band range and brings about a threadlike spatial expression and clearer sound image localization that can fill vitality over the entire range.

Ⅲ. Loaded with an MM/MC changing switch

An MM and MC changing switch is located on the front panel which makes it more useful.

*1: The cartridge that can be used has an output impedance of 1.5 – 40 ohms.
