Features

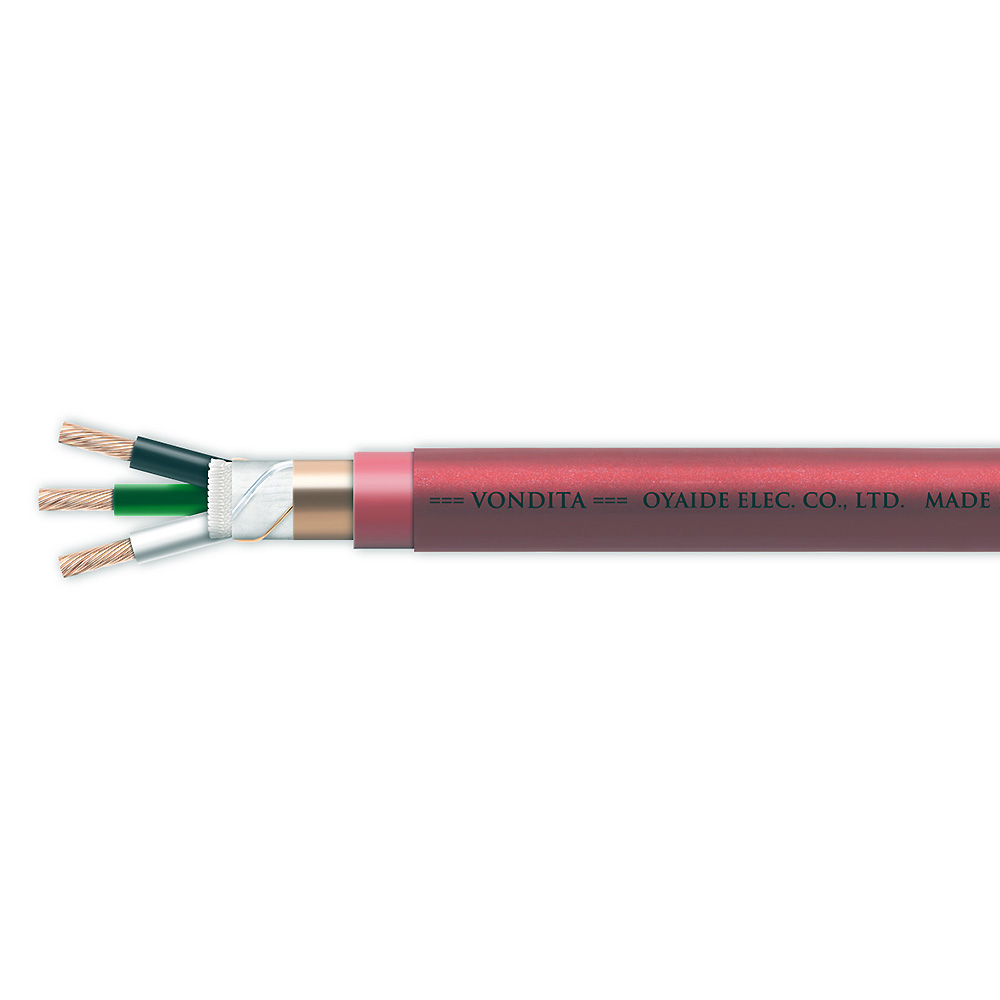

The luxurious use of silk inclusions, the DNA-like double-helix structure of the drain wire, and the outer sheath made of a combination of different materials. All of these are the crystallization of our commitment to thorough vibration control. Vibration suppression is an important element in audio, and this is reflected in the internal design of the cable without compromise. Silk inclusions are also effective in suppressing static electricity. The harmony of these internal designs and the 4.0sq internal conductor with a special twisted structure using the precision conductor “102SSC”, provides excellent spatial expression while maintaining quietness and optimal bandwidth balance for music reproduction.
- Only virgin copper, which does not contain any recycled copper, is used in accordance with JIS C1011 to avoid impurities as much as possible.
- Peeling process is applied to remove 100% of impurities adhering to the surface.
- To facilitate the flow of electrical signals through the conductor surface layer, wires are thinned with a natural diamond die to improve the surface smoothness of the strands.
- The wires are thinned with a processing accuracy of ±1μm, far exceeding the standard error tolerance of ±8μm.
- Annealing process twice eliminates mechanical stress distortion of the strands.
- Thorough product management of manufacturing control values, maintenance, and number of shipping days. The conductivity is 102.3% IACS, which is the highest class.
Specs
| Model Name | VONDITA |
|---|---|
| Cable Structure | 3P Cab-tyre |
| Conductor Material | 102SSC（Hot / Cold / Earth ） |
| Conductor Size / AWG | 4.0sq（SPECIAL 4E STRANDED）/ ≈11AWG |
| Insulator Material | Polymer Polyolefin |
| Shield | Copper Foil |
| Cable Sheath | PVC + Polyolefin |
| Cable O/D | 13.0mm |
| Rated V/A | 300V / 20A ＜PS＞E |
| JAN CODE | 4582387103254 |
| Reel Length | 30m Reel |
| Release Date | 3/19/2021 |
Cable off the Reel
Acrolink 7N-PC4020 Leggenda Mains Power Cable for DIY (PER MTR)
- 7N DUCC COPPER
- FOIL SHIELDED
- SOLD PER METRE
- DATA SHEET HERE
Acrolink 7N-PC4030 Leggenda CB Power Cable Per Metre
- Japanese craftsmanship comes to cables!
- Acrolink 7N purity mains cable per metre off the reel for DIY power leads.
- Stressfree 99.99999% Purity Copper
- NEW DESIGN spec. sheet here
Acrolink 7N-PC4030 Leggenda Power Cable per 1/2 Metre for DIY
- Japanese craftsmanship comes to cables!
- Acrolink 7N purity mains cable per 1/2 metre off the reel for DIY power leads.
- NEW DESIGN spec. sheet here
Acrolink 7N-S1010 Leggenda Speaker Cable Per Metre
Price is per metre length
Such a technology as attaining maximum purity in raw materials is an important technology that has maintained the high levels of Japanese industrial technologies, and creates certain items that can only be manufactured in Japan. A real image of music emerges relatively by minimizing the noise level. The expressiveness, speed, and volume of the overtones that extend downward in the low-pitched music instrument. A vivid sense of reality and a sense of fulfillment that makes it possible to see the realistic vibrations of musical instruments across genres. Global standards will be inherited by the new 7N-S1010 Leggenda.
Alpha Wire 1943 Audiophile Grade Mains Cable for DIY
Alpha Wire is a division of Belden USA who are one of the world's largest manufacturers of signal cables. The 1943 model is a foil screened mains power cable with earth drain wire for DIY mains power leads and mains extension blocks. It is the same spec. as Belden 19364. The design of the 1943 is perfect for mains leads for hifi applications due to the foil shield acting as a barrier to prevent RFI. The drain wire connects to the earth pin in the mains plug and is cut off at the other end, All the mains noise is then kept at the plug end not the equipment end.
