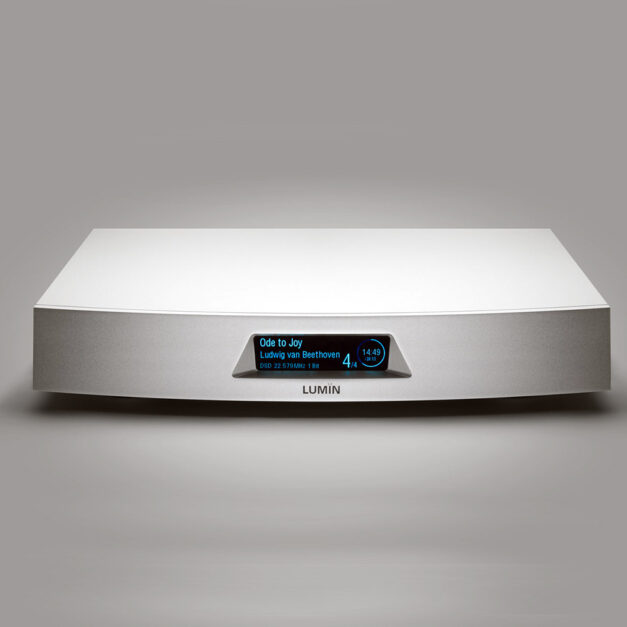

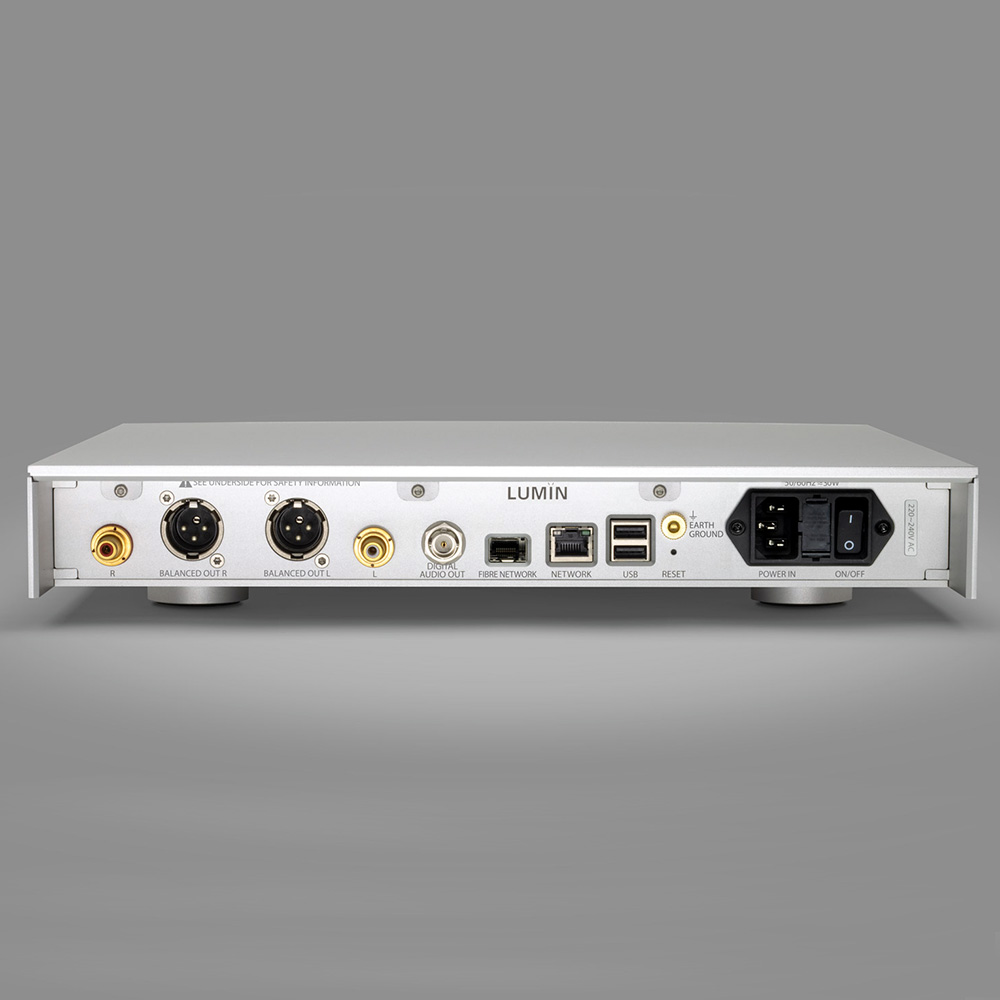

T3X Specifications
DSD SUPPORT:
Up to DSD512 22.6MHz, 1-bit
PCM SUPPORT:
Up to 384kHz, 16–32-bit, Stereo
ANALOG OUTPUT STAGE:
Dual ESS SABRE32 ES9028Pro DAC chips
Fully balanced layout with high-quality components
Completely redesigned analogue buffer includes audiograde output capacitor and ultra-low-noise and high dynamic range
Discreet clock system for precision timing
Precision 32-bit internal digital volume
UPSAMPLING RATES & BIT DEPTHS:
DSD256 upsampling option for all files
PCM 384kHz upsampling option for all files
DIGITAL OUTPUT STAGE:
USB:
Native DSD512 support
PCM 44.1–384kHz, 16–32-bit, Stereo
BNC SPDIF:
PCM 44.1kHz–192kHz, 16–24-bit
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
OPTICAL NETWORK:
Industry-standard SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
POWER SUPPLY:
Internal toroidal linear
Low-noise linear regulator
Shielded power supply compartment for reduced interference with delicate electronics
PHYSICAL:
FINISH:
Black anodised aluminium
Raw anodised aluminium
DIMENSIONS
350mm (W), 350mm (D), 60.5mm (H), 6kg
Lumin Audio
Lumin Class AB Stereo Amplifier
Featuring everything you need and nothing you don't, LUMIN Amp focuses purely on performance. If your LUMIN streamer sounded like a breath of fresh air, prepare to take it to the next level.
- Matched styling.
- Unmatched performance.
- Multi-Stage transistors amplifier
- Dual Mono power supply and amplifier design
- Fully discrete voltage and current gain stages
- DC-coupled signal path
- Class AB operation
- High input impedence and sensitivty for direct DAC drive
- Intelligent bias and thermal management
- Stereo / Dual Mono / Bridged operation
- CNC single billet aluminium construction
- 600VA custom toroidal transformer
- Built-in overload, overheat and DC protection
Lumin D3 Network Music Player
LUMIN D3 brings the audiophile potential of music streaming within everyone's reach.
Building on the success of our most popular and longest-standing model, LUMIN D3 inherits the Sabre DAC technology used throughout the rest of our range and combines it with our new all-aluminium compact chassis.
The latest LUMIN processor technology provides DSD256 upsampling and TIDAL Connect bringing audiophile-grade performance within your reach.
Main features
- Latest processor provides greater resampling flexibility
- New analogue output stage features Sabre DAC and a buffer including LUMIN X1 technology
- New DAC configuration featuring Sabre DAC ES9028PRO
- Retains fully balanced design including XLR outputs
- New surface finish taken from the high-end P1
- Upsampling and downsampling to every supported format up to DSD256/PCM384
- TIDAL Connect and Airplay 2 Compatible as well as Roon Ready, Spotify Connect, MQA, TIDAL, Qobuz, Plex and TuneIn
Lumin Infrared Control Package
After launching Leedh Processing for all LUMIN models, we were inundated with requests for a physical volume control from customers who were removing the preamplifier from their systems.
The result of our development is an Infrared Control Package compatible with all LUMIN models regardless of whether Leedh Processing is being used or not.
Precise tactile volume control and more...
Exceptional quality remote and IR sensor
Compatible with all LUMIN models*
No need to use the App for volume up / volume down / mute / play / pause / next / previous / shuffle / repeat or standby
Roon compatible
Particularly useful in systems without a preamplifier
* A spare rear panel USB port is required
Lumin L2 Network Music Server & Switch
The perfect partner for LUMIN owners who wish to store their own music collection!
The effortless operation of LUMIN L2 belies its advanced features and unrivalled flexibility.
With a 4-port audiophile-grade network switch on board, its two optical fibre SFP ports and two RJ45 copper ports L2 can streamline and enhance your network!
The ideal partner
- Available without drives or with 4TB or 8TB capacity
- Zero configuration required
- Automatically serves all added music
- Fibre Network provides complete isolation from network noise
- 4-port network switch simplifies cabling and makes fibre easy
- UPnP (Openhome) compatible
- USB 3.0 Micro type B for connection to computer
- SMB support for transferring over the network
- Gigabit Ethernet
- Thick-panelled CNC Aluminium construction
Lumin P1 Mini Network Music Player
Just like its bigger brother, P1 Mini is designed to be used as a streamer, a DAC, a pre-amplifier or all three!
With 5 analogue and digital inputs, a linear power supply and many other components taken from flagship players, LUMIN P1 Mini packs incredible versatility and value into its new slim chassis.
Main features
- Five inputs including USB, HDMI, SPDIF and Analogue
- HDMI with stereo input + AV Passthrough & ARC
- Dual DAC ES9028PRO
- DSD512 & PCM384
- Femto Clock System with precision FPGA distribution
- New internal toroidal linear power supply
- Dual Network with Optical Fibre Network support
- Leedh Processing lossless volume control
Lumin P1 Network Music Player
Lumin's most flexible player yet, LUMIN P1 is designed to sit right in the heart of your audio system.
LUMIN P1 makes system integration easier than ever:
- 9 digital & analogue inputs
- USB digital audio input & output support up to Native DSD512
- Balanced & unbalanced analogue inputs
- SPDIF & AES input support up to 192/24 & DoP
- HDMI 2.0 inputs & 4K passthrough with ARC support
Specified for exceptional musical performance:
- New processor delivers native DSD512 & PCM384 playback
- Dual Mono design throughout maximises channel separation
- Dual ES9028PRO SABRE DACs in Mono mode
- Femto Clock System with precision FPGA distribution
- New integrated dual-toroidal linear power supply & all-in-one chassis
- Fibre Network provides complete isolation from network digital noise
- Leedh Processing lossless volume control
