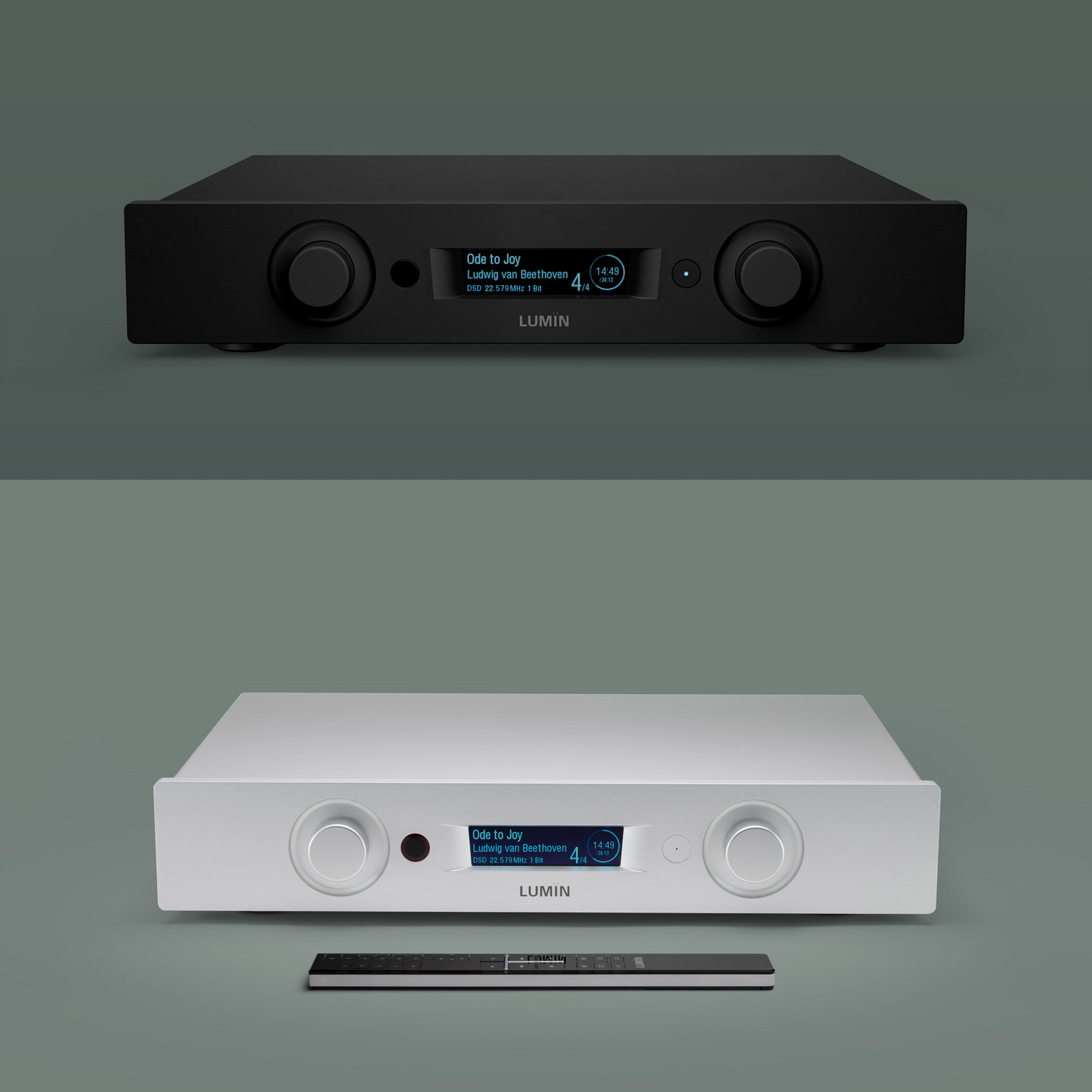

Name: Lumin P1 Mini Network Music Player
Brand: Lumin
SKU: 781629
Price: 3495.83 GBP
Availability: InStock

Lumin P1 Mini Network Music Player

£4,195.00

Just like its bigger brother, P1 Mini is designed to be used as a streamer, a DAC, a pre-amplifier or all three!

With 5 analogue and digital inputs, a linear power supply and many other components taken from flagship players, LUMIN P1 Mini packs incredible versatility and value into its new slim chassis.

Main features

Five inputs including USB, HDMI, SPDIF and Analogue
HDMI with stereo input + AV Passthrough & ARC
Dual DAC ES9028PRO
DSD512 & PCM384
Femto Clock System with precision FPGA distribution
New internal toroidal linear power supply
Dual Network with Optical Fibre Network support
Leedh Processing lossless volume control

P1 Mini Specifications

NETWORK PLAYBACK:
Up to DSD512
Up to 384 kHz, 16–32-bit, Stereo

MQA Full Decoding

UPSAMPLING RATES & BIT DEPTHS:
DSD256 upsampling option for all files
PCM 384kHz upsampling option for all files

DIGITAL INPUT:
USB:
USB Audio Class 2 Compatible
WINDOWS 10 (Release 1703 or above) / Mac OSX or above
DoP 128 support
PCM 44.1–384 kHz, 16 / 32-bit, Stereo

OPTICAL/SPDIF:
PCM 44.1 kHz–192 kHz, 16–24-bit
DSD64 (DoP64, DSD over PCM)

HDMI:
PCM 2.0 Audio support
4K Video Passthrough

DIGITAL OUTPUT:

USB:
Native DSD512 support
PCM 44.1–384 kHz, 16–32-bit, Stereo

BNC SPDIF:
PCM 44.1 kHz–192 kHz, 16–24-bit
DSD64 (DoP64, DSD over PCM)

HDMI:(HDMI PASSTHROUGH AND ARC SUPPORT)
PCM 2.0 Audio support
4K Video Passthrough
ARC (Audio Return Channel) support

ANALOGUE INPUT:
RCA Stereo x1

ANALOG OUTPUT:
Dual ESS SABRE32 ES9028Pro DAC chips
Fully balanced layout with high-quality components
Femto Clock System with precision FPGA distribution

OPTICAL NETWORK:
Industry-standard Gigabit SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

POWER SUPPLY:
Internal toroidal linear
Low-noise linear regulator

PHYSICAL:

FINISH:
Black anodised aluminium
Raw anodised aluminium
LUMIN (SOLID ALUMINIUM CHASSIS):
400mm (W), 314mm (D), 77mm (H), 7kg
