Please note we sell this cable off the reel for DIY per 1/2 metre. If you need say 3.5 metres add qty 7 to your basket, the cable will be supplied in one length.
Furutech’s α (Alpha) PC-Triple C is one of a select few of conductors that Furutech engineers have found to excel in sound reproduction. α (Alpha) PC-Triple C is made with Furukawa high-purity oxygen-free copper using a special forging process. Unlike regular OFC (oxygen-free copper), almost all of the impurities of this high-purity OFC have been removed at the micron level through a special casting process unique to Furukawa.
Purposely designed and developed for audio signal conductors, α (Alpha) PC-Triple C is flexible, strong and can be drawn into a very fine wire. This new conductor, while not single-crystal like PCOCC, features crystal grain boundaries that are almost totally free of impurities which allows even the smallest of signals to be transmitted. While PCOCC is a single-crystal conductor, it is susceptible to imperfections during production.
Since α (Alpha) PC-Triple C employs a fixed angle continuous transport forging process, pressure is applied to the high-purity oxygen-free copper tens of thousands times. This ensures that any crystal grain boundaries that were present in a vertical direction become longitudinal, and the crystals become connected and uniform in their direction. This process also helps to remove the imperfections that are often found in PCOCC, which create a more conductive and acoustic conductor.
The resulting conductor has an extremely fine resolution down and through the very low noise floor, improved sound staging and image palpability, a musical, attractive, “round” midrange, tight and controlled bass, plus power and dynamics to spare to set your music on fire!

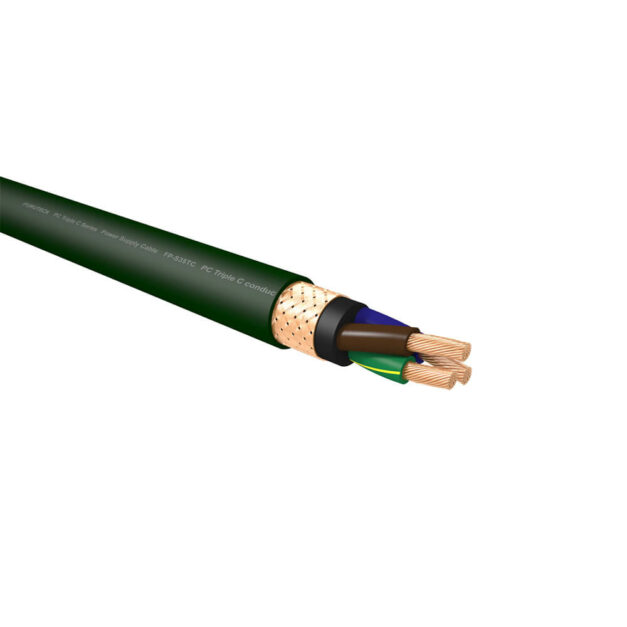

SPECIFICATIONS:
- Alpha PC Triple C conductor: diameter 2.5mm (12 AWG)
- Insulation: Special grade Flexible PVC (Brown, Light Blue, Green/Yellow) diameter 5.0mm
- Inner Sheath: Special grade Flexible PVC (Black) diameter 12.0mm
- Shield: 0.12mm OFC Wire Braid
- Outer Sheath: Flexible PVC (Dark Green) diameter 16.0mm
- Purity > 99.996%
- Conductivity (EC)≒101.5 IACS%
- Tensile strength (TS) ≒250 MPa
- Elasticity (E) ≒35% Wire (1.3mmΦ)
