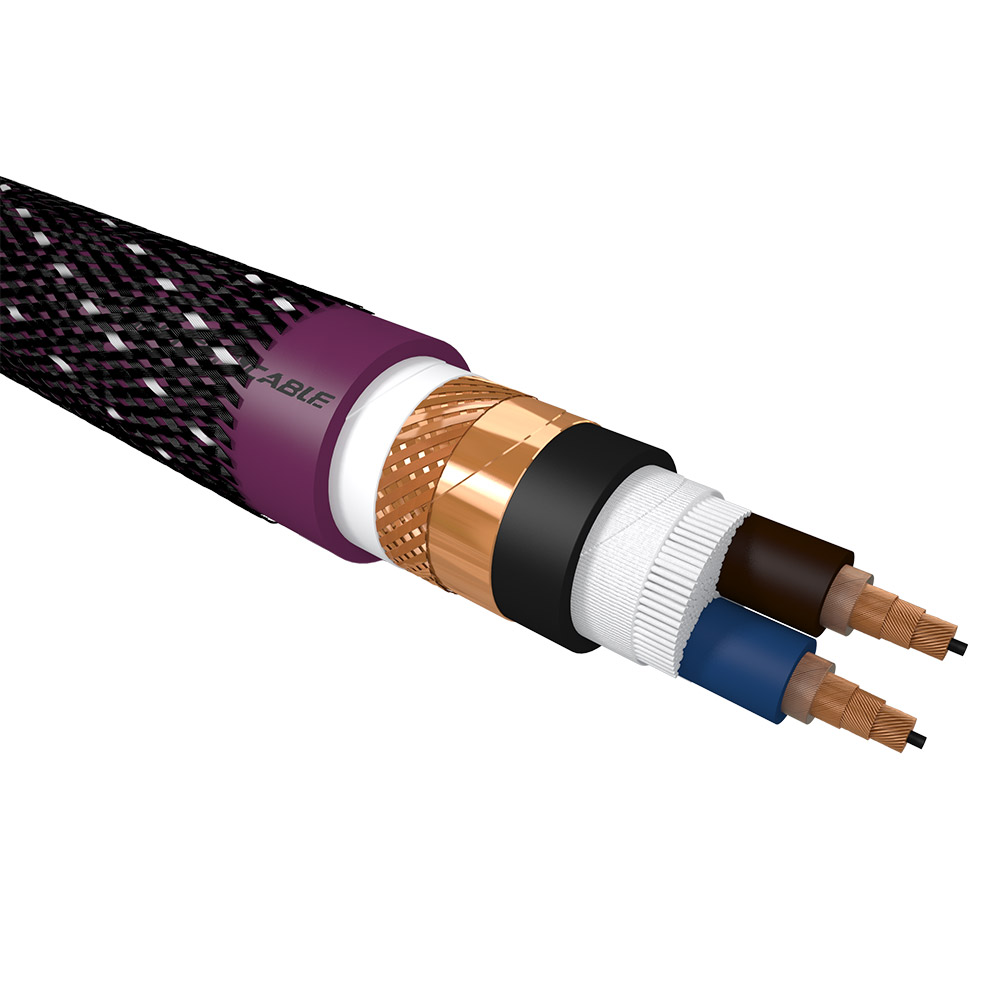

Alpha OCC-DUCC Speaker Bulk Cable DSS-4.1
The new Furutech DSS-4.1 (11 AWG) speaker cable is Furutech’s newest, top-of-the-line bulk speaker cable, available for DIY termination into your favorite speaker cable connectors. The DSS-4.1 is virtually identical to the Furutech DPS-4.1 POWER CABLE, but it omits the safety ground. The DSS-4.1 OCC–DUCC bulk Speaker Cable is constructed using a combination of DUCC (Ultra Crystallized High Purity Copper and Furutech’s own “Alpha” OCC.
“AMONG THE WORLD’S FINEST”: HIFI WORLD SAMPLES FURUTECH’S DSS-4.1 SPEAKER CABLE
Reviews
AudioVideo
Novo High End
Singapore Hifi Blogspot
Furutech’s DUCC Ultra Crystallized High Purity Copper is supplied and regulated with strict quality control by Mitsubishi Materials Industries. MMI is a leading manufacturer of the highest-purity oxygen-free copper in the world. Mitsubishi’s process uses newly developed technology that optimally aligns the crystals while reducing the number of crystal-grain boundaries.
The DSS 4.1 Speaker Cable comes included with a textile sheath/covering which is soft to the touch, and very attractive. This cable has a shield, and is designed not to need connection at either end, per Furutech’s recommendation. Flexibility is exceptional, and much better than many speaker cables of this AWG and/or diameter.
Technical Specifications
|
Construction and Material |
|
|||
|
Item |
Specification |
|||
|
Conductor |
Material |
Alpha-OCC + α-DUCC (7N Class) |
||
|
Construction （pcs／mm） |
Center – 1/0.8 NCF PE core
Inner – 89/0.18α-OCC (Right rotate) Middle – 39/0.18α-OCC (Left rotate) Outer – 62/0.13α-DUCC (Right rotate) |
|||
|
Diameter （mm） |
2.58 Approx. |
|||
|
Size |
11AWG / 4.08 Sq.mm |
|||
|
Insulation |
Inner Material |
Audio Grade FEP (Fluoropolymer) |
||
|
Outer Material |
Audio Grade P.E.(Brown for”+”、Blue for “-“) |
|||
|
Diameter （mm） |
5. 5 |
|||
|
Twisting |
Method |
2 Cores Twisted Together |
||
|
Fillers |
Polyester fibers Filler |
|||
|
Barrier Layer-1 |
Non-Woven Fabric wrap |
|||
|
Inner Sheath |
Material |
Audio Grade Flexible PVC (Black) Nano-Ceramic / Carbon particle compound |
||
|
Diameter （mm） |
15.0 |
|||
|
Shield |
Material |
Cu-Foil + Braided OFC |
||
|
Barrier Layer-2 |
Paper wrap |
|||
|
Outer Sheath |
Material |
Audio Grade Flexible PVC (Dark purple) |
||
|
Nom. Thickness（mm） |
1.2 |
|||
|
Outer Sleeve |
Material |
Nylon yarn stranded braid(Black/Silver) |
||
|
Overall Diameter （mm） |
19.0 Approx. |
|||
|
Electrical Properties |
|
|
||
|
Item |
Specification |
Test Method |
||
|
Max. Conductor Resistance Ω／km |
4.5 |
JISC3005 6 20℃ |
||
|
Insulation Resistance MΩ‧km |
>2500 |
JISC3005 9.1 20℃ |
||
| Capacitance PF/M | 51.69 Approx. | at 1 KHz | ||
| Inductance uH/M | 0.7 Approx. | at 1 KHz | ||
|
Dielectric Strength V/1 min. |
AC 3000 |
JISC3005 8 |
||
Cable off the Reel
Acrolink 7N-PC4020 Leggenda Mains Power Cable for DIY (PER MTR)
- 7N DUCC COPPER
- FOIL SHIELDED
- SOLD PER METRE
- DATA SHEET HERE
Acrolink 7N-PC4030 Leggenda CB Power Cable Per Metre
- Japanese craftsmanship comes to cables!
- Acrolink 7N purity mains cable per metre off the reel for DIY power leads.
- Stressfree 99.99999% Purity Copper
- NEW DESIGN spec. sheet here
Acrolink 7N-PC4030 Leggenda Power Cable per 1/2 Metre for DIY
- Japanese craftsmanship comes to cables!
- Acrolink 7N purity mains cable per 1/2 metre off the reel for DIY power leads.
- NEW DESIGN spec. sheet here
Acrolink 7N-S1010 Leggenda Speaker Cable Per Metre
Price is per metre length
Such a technology as attaining maximum purity in raw materials is an important technology that has maintained the high levels of Japanese industrial technologies, and creates certain items that can only be manufactured in Japan. A real image of music emerges relatively by minimizing the noise level. The expressiveness, speed, and volume of the overtones that extend downward in the low-pitched music instrument. A vivid sense of reality and a sense of fulfillment that makes it possible to see the realistic vibrations of musical instruments across genres. Global standards will be inherited by the new 7N-S1010 Leggenda.
Alpha Wire 1943 Audiophile Grade Mains Cable for DIY
3 x 14awg copper conductors with foil shield and active earth screening. Sold by the metre off the reel. You will receive 1 continuous length, example order 6 receive 1 x 6 metre length.
