Name: Furutech DSS-4.1 Loudspeaker Cables MCRU SE
Brand: Furutech
SKU: 778451
Price: 2041.67 GBP
Availability: InStock

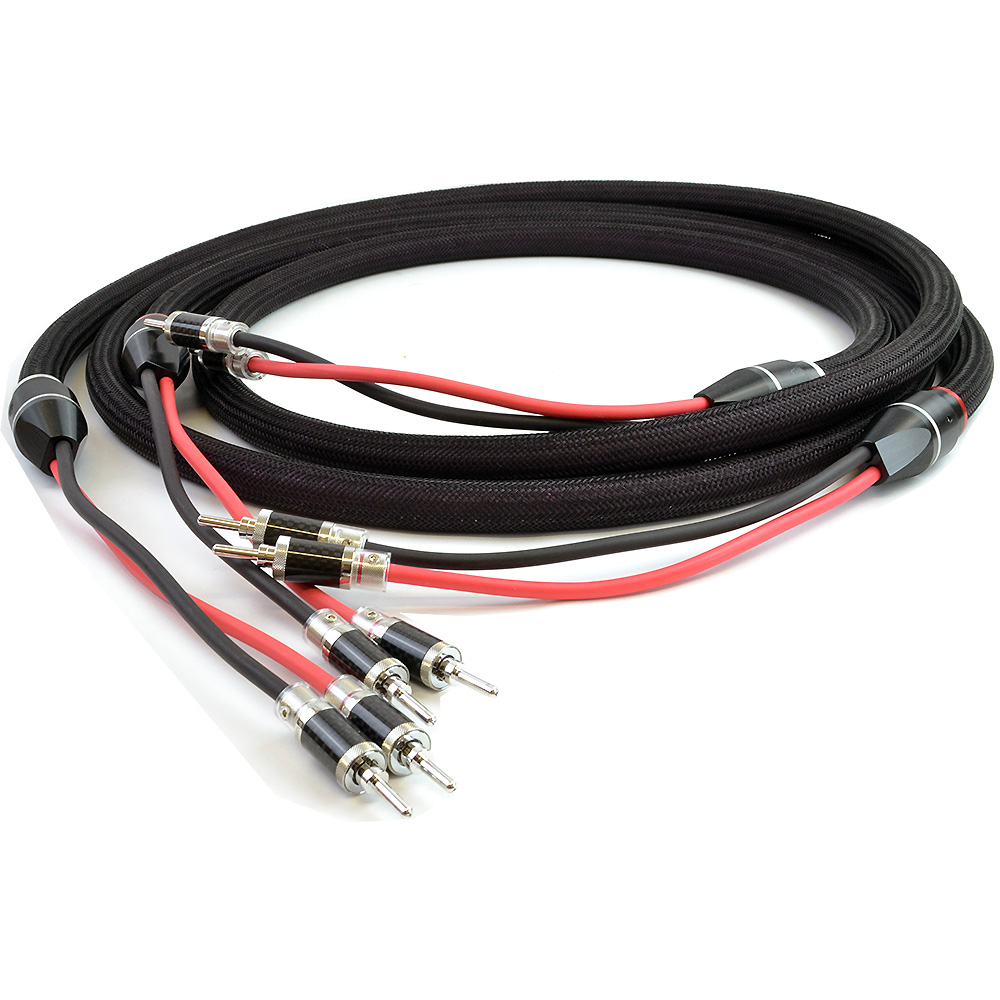

Furutech DSS-4.1 Loudspeaker Cables MCRU SE

1 set cancelled order
2.5 metres long
Carbon infused sleeving

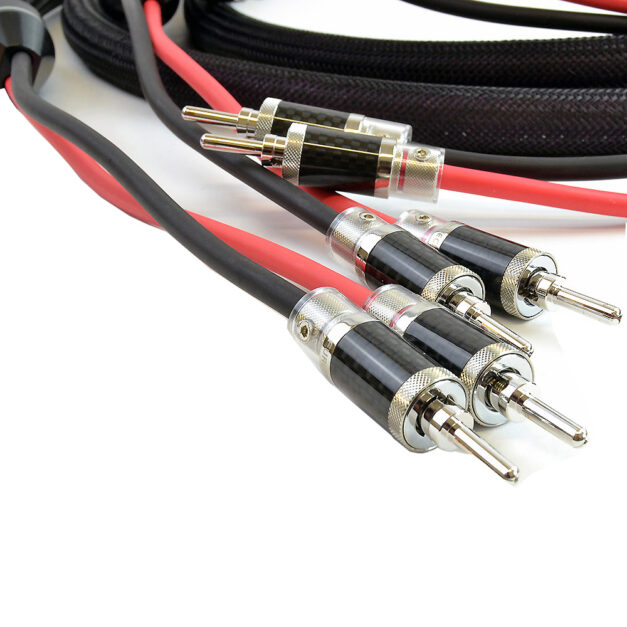

Furutech carbon fibre rhodium locking banana plugs

MCRU have available a rather special pair of loudspeaker cables that were made and cancelled.

2.5 metre stereo pair using Furutech DSS-4.1 DUCC copper cable (£400 per metre retail) terminated with Furutech carbon fibre bodied rhodium plated locking banana plugs for optimum performance.

The cable is sheathed in our carbon fibre infused sleeving to protect the cables from the affects of RFI.

A truly remarkable set of cables.

In stock

Furutech’s DUCC Ultra Crystallized High Purity Copper is supplied and regulated with strict quality control by Mitsubishi Materials Industries. MMI is a leading manufacturer of the highest-purity oxygen-free copper in the world. Mitsubishi’s process uses newly developed technology that optimally aligns the crystals while reducing the number of crystal-grain boundaries.

The DSS 4.1 Speaker Cable comes included with a textile sheath/covering which is soft to the touch, and very attractive. This cable has a shield, and is designed not to need connection at either end, per Furutech’s recommendation. Flexibility is exceptional, and much better than many speaker cables of this AWG and/or diameter.

Technical Specifications

Construction and Material
Item			Specification
Conductor	Material		Alpha-OCC + α-DUCC (7N Class)
	Construction （pcs／mm）		Center – 1/0.8 NCF PE core Inner – 89/0.18α-OCC (Right rotate) Middle – 39/0.18α-OCC (Left rotate) Outer – 62/0.13α-DUCC (Right rotate)
	Diameter （mm）		2.58 Approx.
	Size		11AWG / 4.08 Sq.mm
Insulation	Inner Material		Audio Grade FEP (Fluoropolymer)
	Outer Material		Audio Grade P.E.(Brown for”+”、Blue for “-“)
	Diameter （mm）		5. 5
Twisting	Method		2 Cores Twisted Together
Fillers			Polyester fibers Filler
Barrier Layer-1			Non-Woven Fabric wrap
Inner Sheath	Material		Audio Grade Flexible PVC (Black) Nano-Ceramic / Carbon particle compound
	Diameter （mm）		15.0
Shield	Material		Cu-Foil + Braided OFC
Barrier Layer-2			Paper wrap
Outer Sheath	Material		Audio Grade Flexible PVC (Dark purple)
	Nom. Thickness（mm）		1.2
Outer Sleeve	Material		Nylon yarn stranded braid(Black/Silver)
Overall Diameter （mm）			19.0 Approx.
Electrical Properties
Item		Specification		Test Method
Max. Conductor Resistance Ω／km		4.5		JISC3005 6 20℃
Insulation Resistance MΩ‧km		>2500		JISC3005 9.1 20℃
Capacitance PF/M		51.69 Approx.		at 1 KHz
Inductance uH/M		0.7 Approx.		at 1 KHz
Dielectric Strength V/1 min.		AC 3000		JISC3005 8
