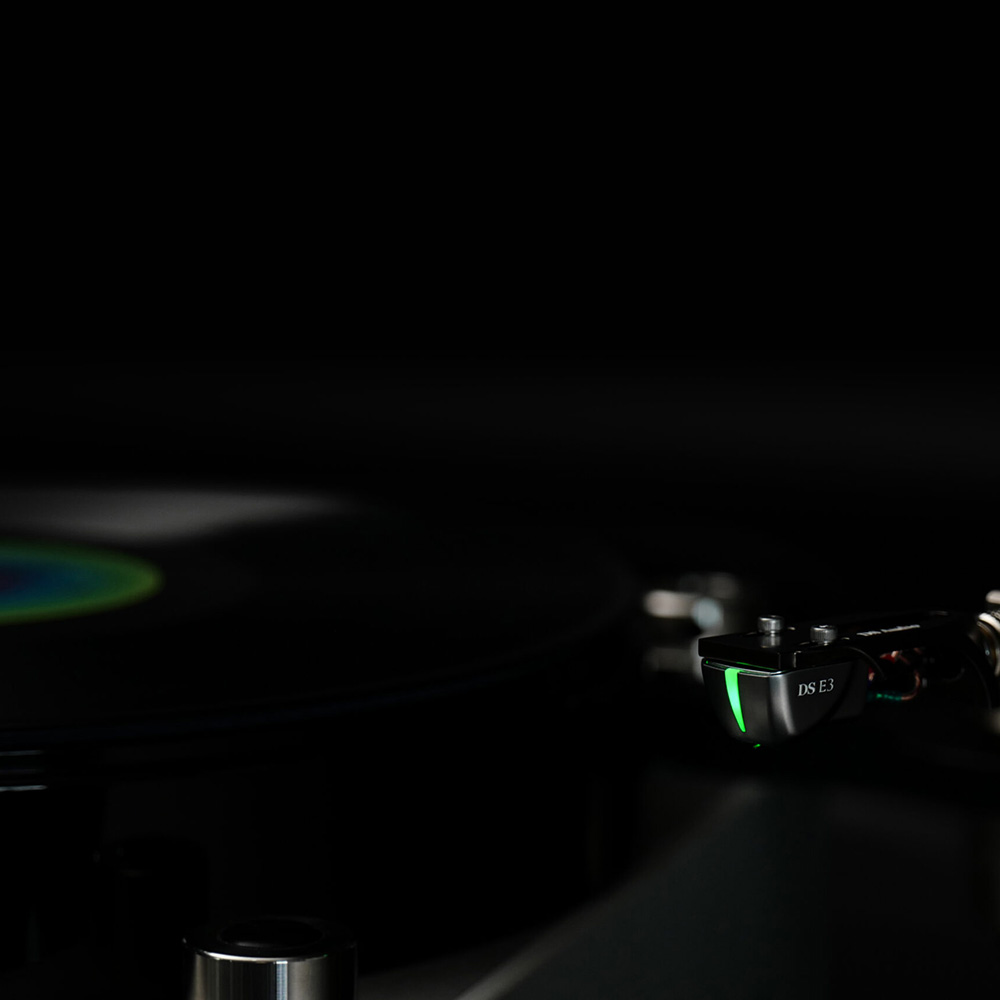

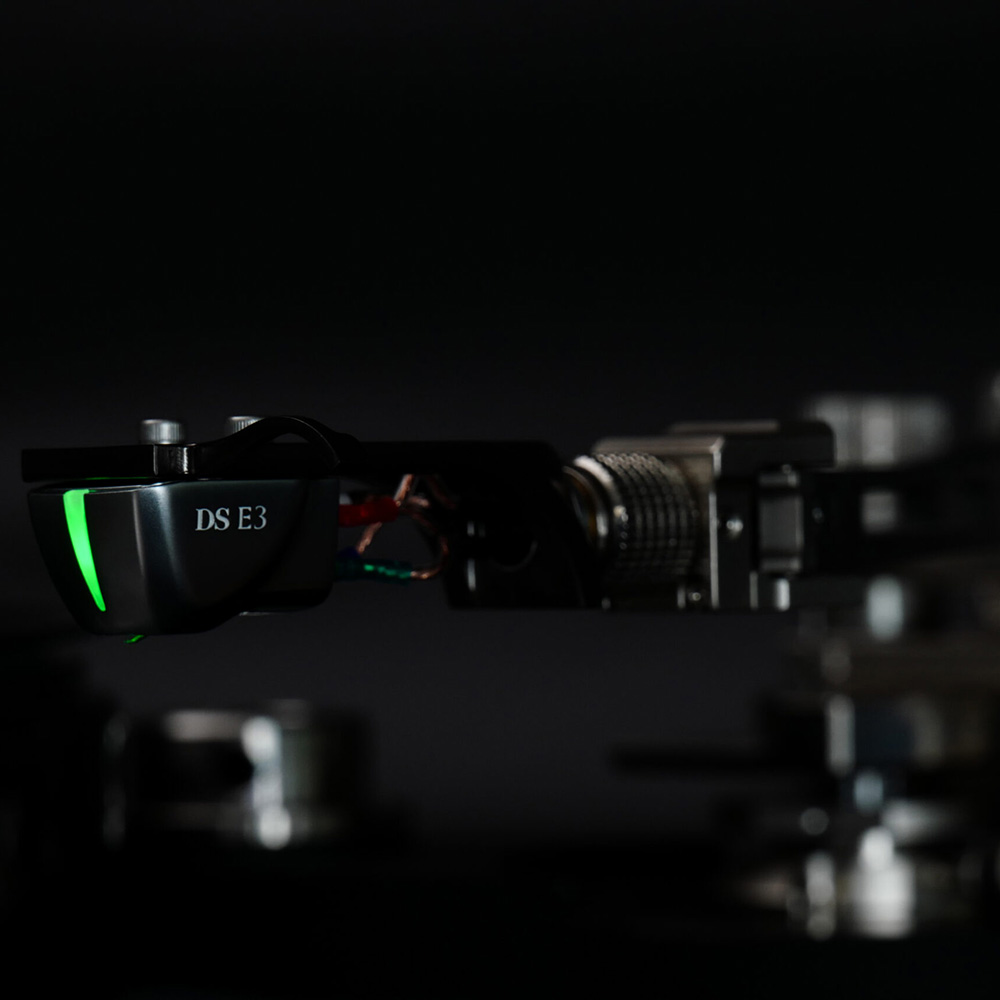

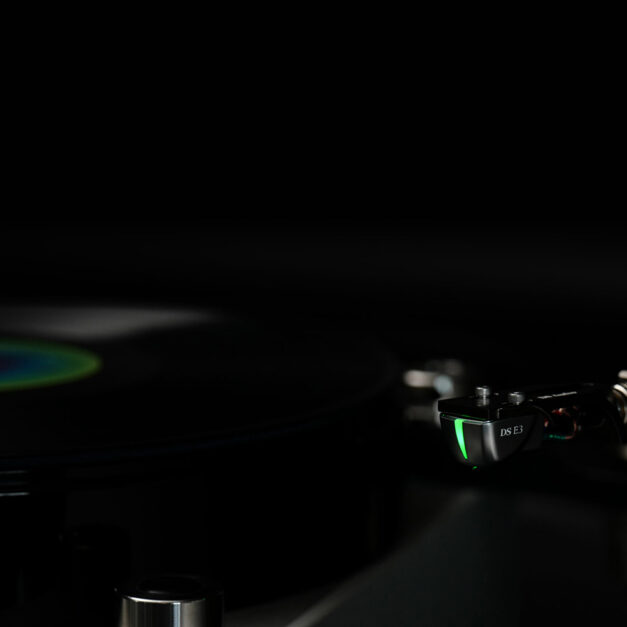

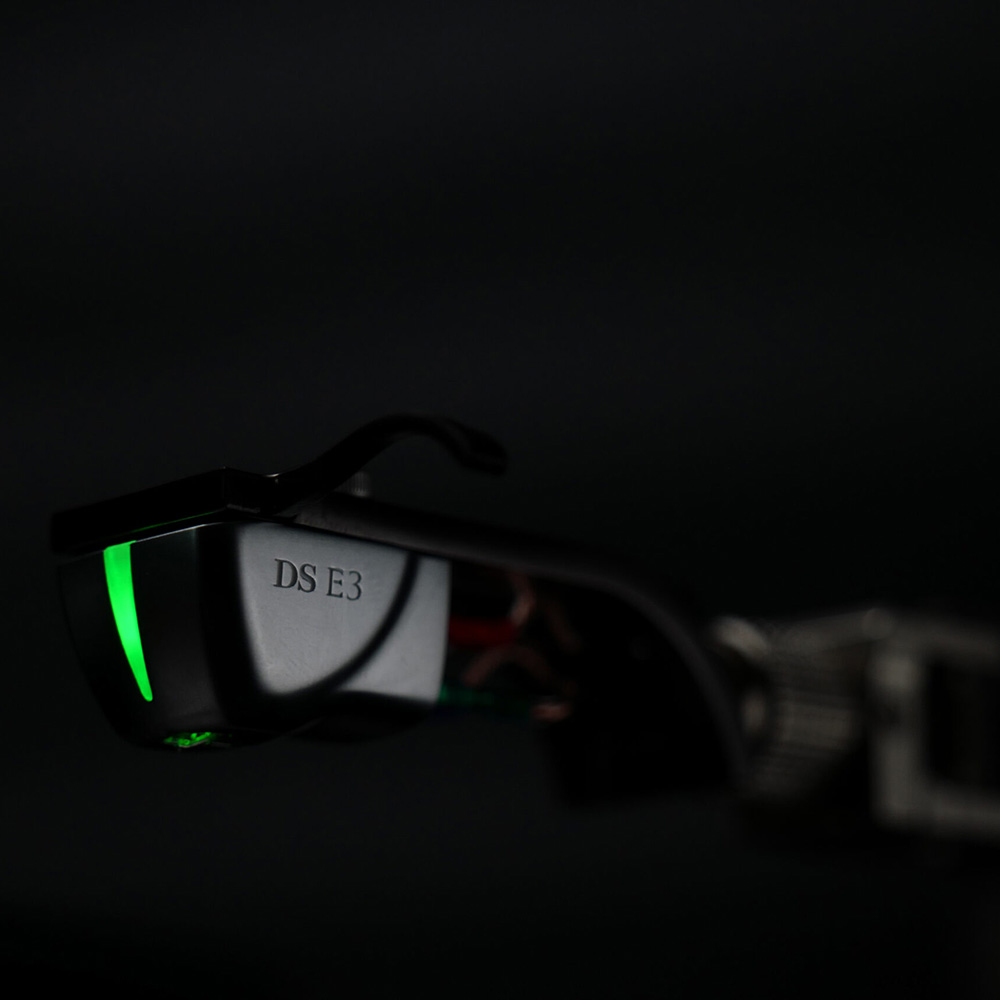

DS Audio DS-E3 Optical Cartridge and Phono Amplifier

Uses a third-generation optical cartridge mechanism
The DS-E3 uses a third-generation optical cartridge mechanism, the same design as our other products.

The DS-E3 achieves an overwhelmingly low price while inheriting the merits of the third-generation mechanism, such as higher output due to independent LED and PD, improved channel separation, and the use of a beryllium light shielding plate.

Aluminum cantilever with elliptical needle
The cantilever is made of aluminum and the needle tip is a solid elliptical needle. While adopting the third-generation optical cartridge mechanism, the channel separation is set 1db lower to improve mass production efficiency.

Equalizer: New Amplification and Power Supply Circuits
In the DS-E3 equalizer, the amplification circuit has been made symmetrical, and the voltage supplied to the cartridge has been stabilized to achieve a clearer and faster sound.

Miniaturization is achieved by using an operational amplifier
The DS-E3 equalizer uses an operational amplifier as the amplifying element to minimize the signal path, thereby greatly reducing the number of components and achieving a smaller size. As a result, the DS-E3 equalizer is about 1/3 the size of the DS003 equalizer.

Specifications

Signal output: Photo-electric Conversion
Channel separation: 26db more (1kHz)
Weight: 7.7g
Output signal level: 70mV more
Canti-lever: Aluminum
Body material: Aluminum
Needle pressure: 2.0g~2.2g(2.1g is recommended)
Stylus: Elliptical Needle

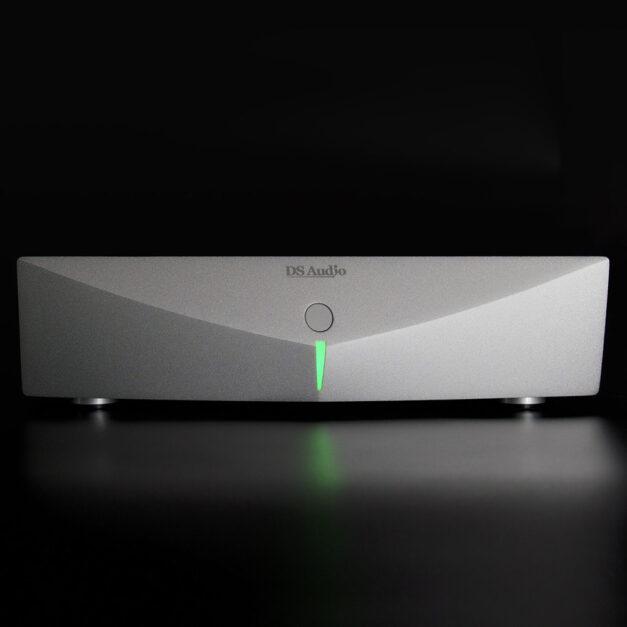

DS-E3 Equalizer for Optical Cartridge
Output voltage: 500mV(1kHz)
Output impedance: 120Ω
Pre amp input impedance: More than 10kΩ
Input terminal: RCA terminal
Output terminal: RCA terminal (Switch two outputs with switch)
Size: W26cm×H6.9cm×D19.5cm
Weight: 1.86kg
