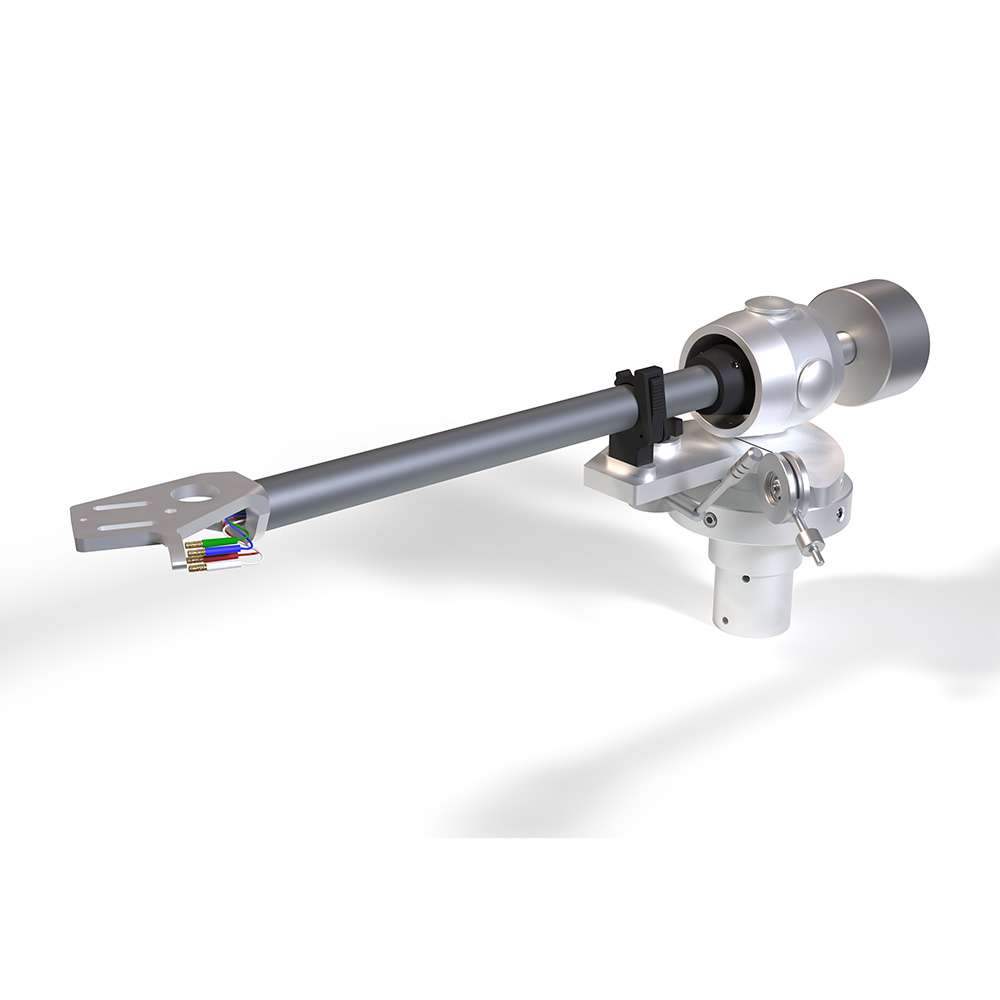

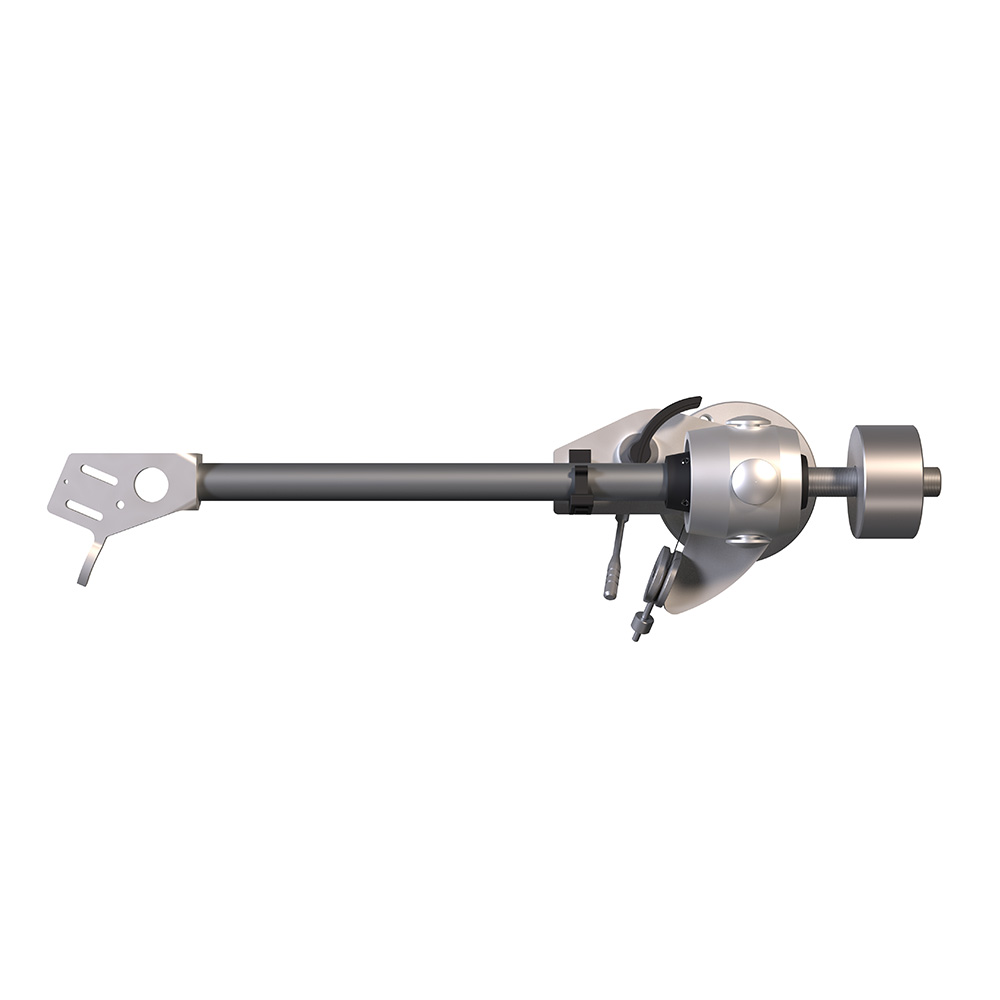

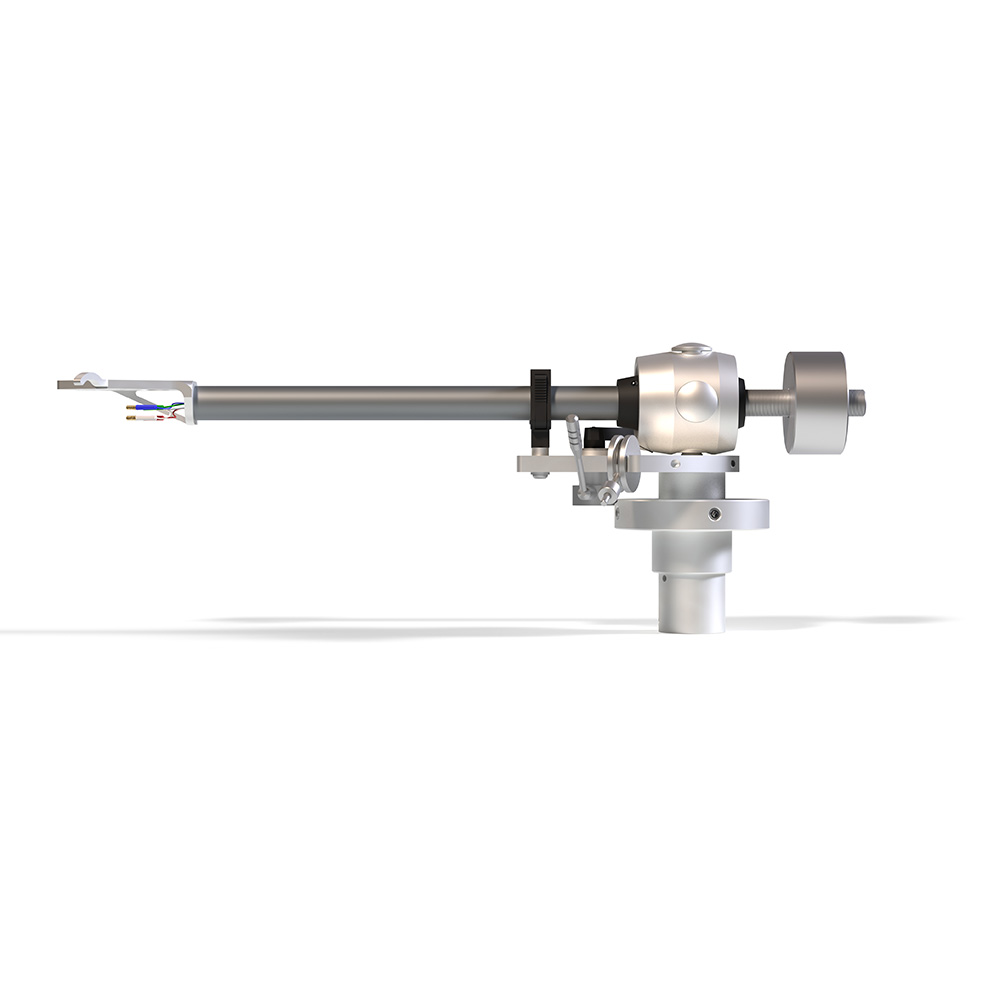

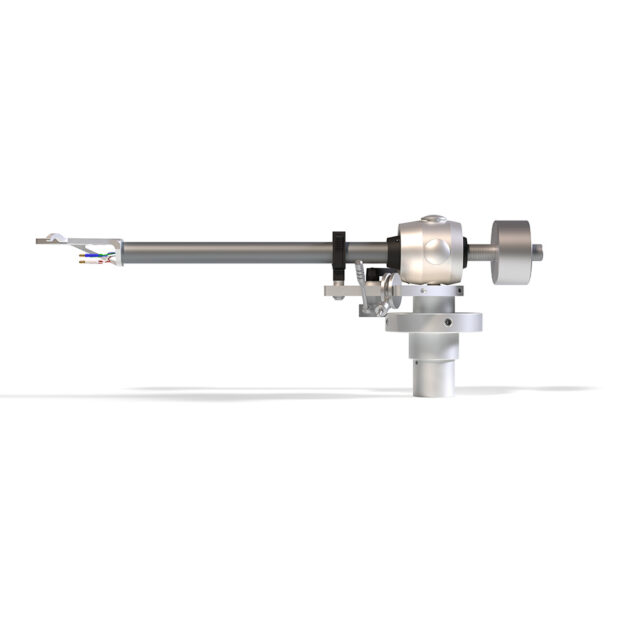

Identical in every way to the PU7 Alloy, the PU7 Titanium provides a slightly more textured and detailed presentation due to the extra rigidity of its titanium armtube.
The armtube is damped with our unique Meta Material Armtube Damping System, (M.M.A.D.S.), 3D printed from an ultra-light and ultra-rigid material which provides perfect damping and keeps the internal cabling from touching any part of the armtube.
The internal cabling is supplied by Cardas with a choice of Van Damme external cable or a 5 pin DIN allowing you to connect your own tonearm cable.

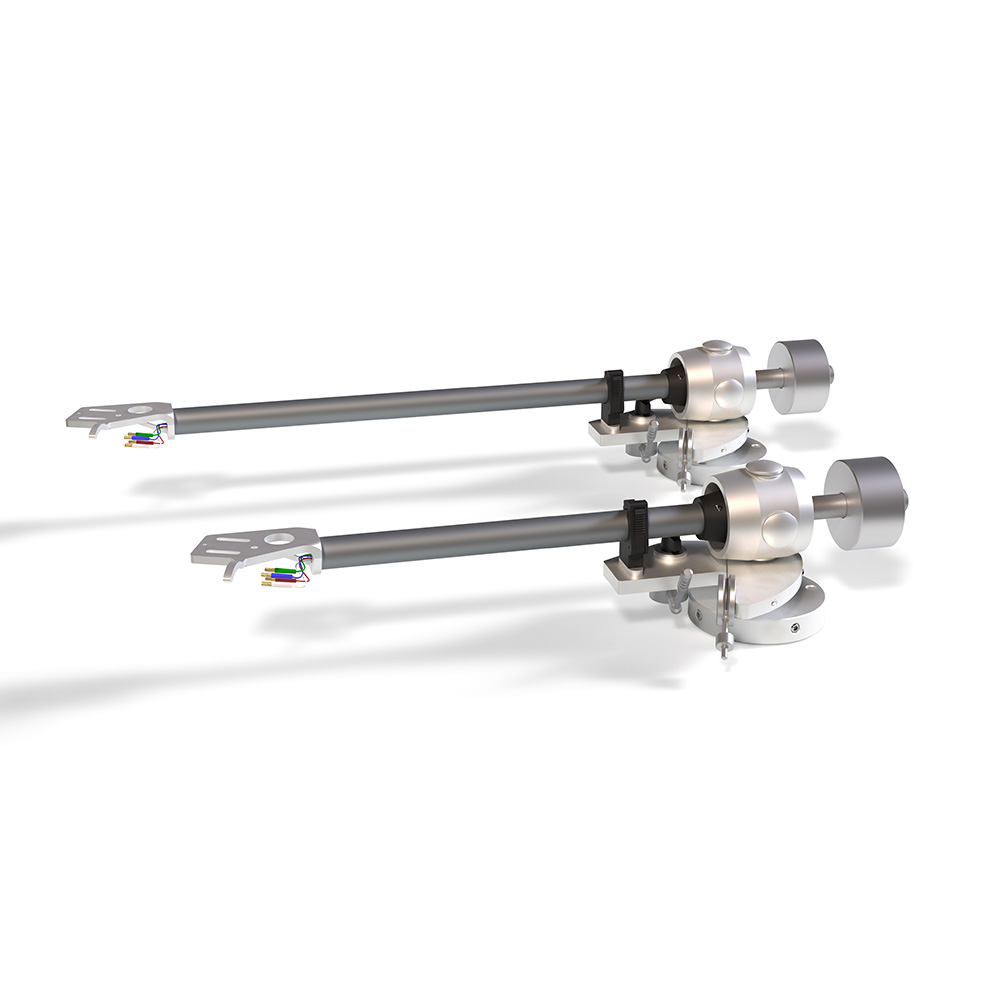

The 12 inch version of the PU7 Titanium has the same sonic characteristics of the 9 inch, but with increased dynamics and slightly better tracking due to the arm length.
The Audio Origami PU7 Titanium is bead-blasted, brightened and anodised in a choice of satin silver or satin black allowing you to choose the finish that suits your turntable.
This is one stunning tonearm, both visually and audibly. It simply allows your cartridge to do the talking.
M.M.A.D.S
META-MATERIAL ARM DAMPING SYSTEM
All tonearm tubes suffer from resonance regardless of the material they are made from. Vibrations caused by the stylus and airborne resonance travel up and down the arm tube and the internal cables, increasing the noise floor and affecting the signal picked up by the cartridge.
Audio Origami has invented a unique method of damping arm tubes, which provides perfect damping and resonance control.
M.M.A.D.S is a tunnel embedded within the arm tube, made from a material that “floats” the internal cabling and reduces any resonance reaching the cables. The tunnel is suspended by ultra-thin flanges made from a material that rejects vibration.
Unlike other damping methods, such as foam or rubber, M.M.A.D.S doesn’t dull the sound. In fact, it lowers the noise floor so much that you experience more clarity and air from your records.
Specifications
9 Inch PU7 Titanium
Effective Length: 9 inches
Effective Mass: 10.5g
Tonearm Type: Ball Race Gimbal
Mount: Rega / Linn
Base: Aluminium
Armtube: Titanium
Headshell: Aluminium
Gimbal Housing: Delrin
VTA: Adjustable
Azimuth: Adjustable
Anti-Skate: Adjustable
Damping: Meta Material
Internal Wiring: Cardas
External Wiring: Optional
Counterweight: Threaded Steel
Colour: Silver or Black
Packaging: Cardboard and Foam
12 Inch PU7 Titanium
Effective Length: 9 inches
Effective Mass: 10.5g
Tonearm Type: Ball Race Gimbal
Mount: Rega / Linn
Base: Aluminium
Armtube: Titanium
Headshell: Aluminium
Gimbal Housing: Delrin
VTA: Adjustable
Azimuth: Adjustable
Anti-Skate: Adjustable
Damping: Meta Material
Internal Wiring: Cardas
External Wiring: Optional
Counterweight: Threaded Steel
Colour: Silver or Black
Packaging: Cardboard and Foam
Audio Origami
Audio Origami – AMPodium Amplifier Isolation Platform
The AMPodium by Audio Origami is a high-end isolation platform for amplifiers that protects the signal from ground-based resonance
Crafted from thick, rigid perspex and combined with highly effective isolation pillars, the AMPodium stops harmful vibrations degrading the audio signal.
Designed for large amplifiers and mono-blocks. the AMPodium provides a safe and stable platform that promotes cooling as well as excellent isolation.
Audio Origami – GTPuck Record Stabiliser
A Simple, Instant Upgrade For Turntables
A record stabiliser is essential to couple your records to your platter. Playing records without a stabiliser results in a thinner sound and a narrower presentation.
The GTPuck is the result of hundreds of hours of research and development with varying materials and weights. An o-ring spindle gripper holds the puck in the correct position, and the stabiliser is decoupled from the vinyl by a large base o-ring. The GTPuck is 270 grams and is machined from billet aluminium to be perfectly concentric.
The GTPuck helps your turntable get the most from your records.
Audio Origami – isoGlobes
Audio Origami isoGlobes provide excellent audio isolation at an affordable price.
Designed to sit underneath hi-fi electronics or plinths, the clever construction of the isoGlobes absorbs a high level of vibration that otherwise could enter your hi-fi equipment and alter playback.
Audio Origami isoGlobes are constructed from varying density 3D printed PLA+ caps, high-quality rubber o-rings and dense steel balls. The combination of these materials absorbs vibrations and decouples your components from your hi-fi rack.
Audio Origami – IsoPodium
The perfect isolation platform for audiophiles with high-performing source components.
Crafted from thick, rigid perspex and Audio Origami’s outstanding isoPods isolation feet, the isoPodium reduces vibrations reaching your turntable, DAC or CD Player.
The isoPodium looks superb, frees your source component from audible resonances and enhances your musical enjoyment by delivering purer playback.
Audio Origami – isoPods
Audio Origami isoPods are designed to provide a level of isolation previously unmatched in the high-end audio industry.
One of the most overlooked components of hi-fi equipment is the feet that each unit sits on. Most manufacturers glue a thin aluminium layer to a hard shore rubber base and screw them into the unit’s base. This solution is generally ineffective at stopping vibrations from leaking into the component.
Audio Origami isoPods are constructed from a blend of varying density 3D printed honeycomb premium-grade rubber layers and mild steel encapsulated in a sturdy housing and provide a level of isolation previously unachievable in the audio industry.
