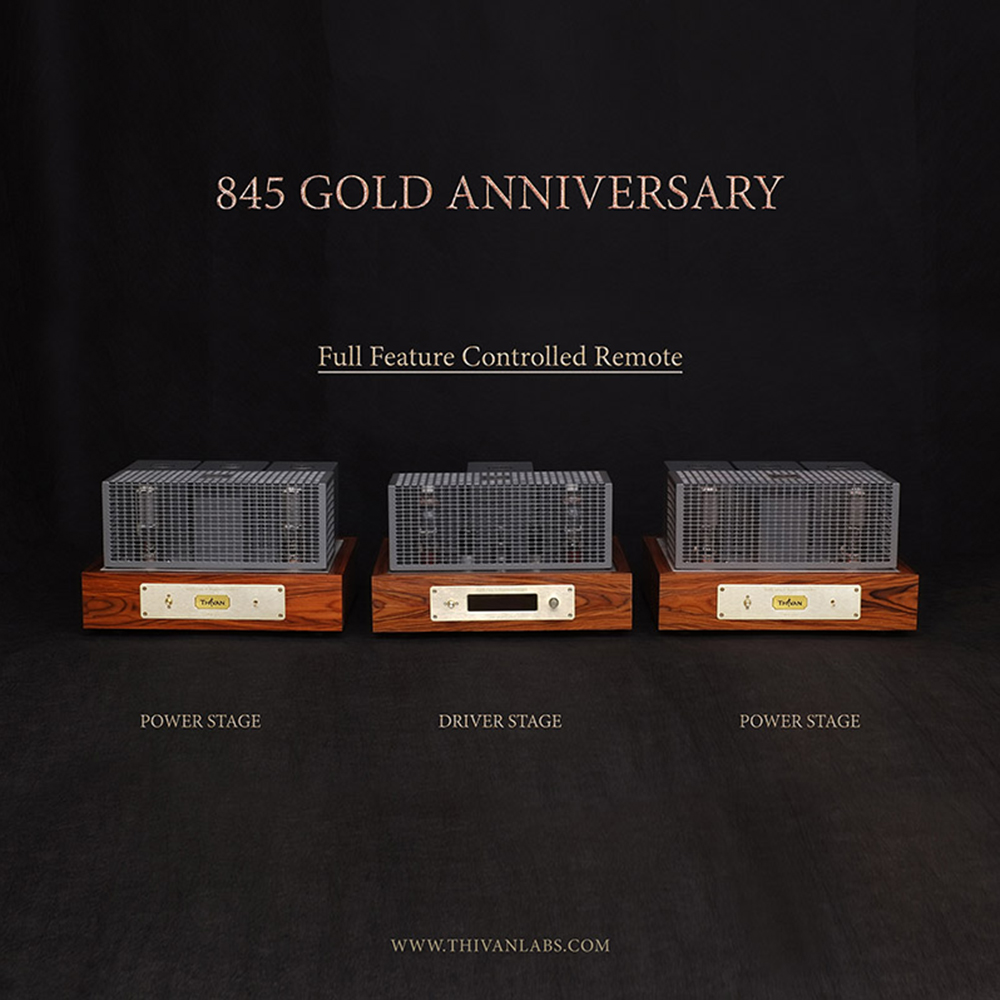

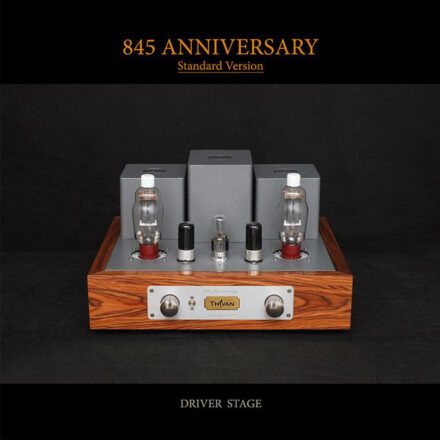

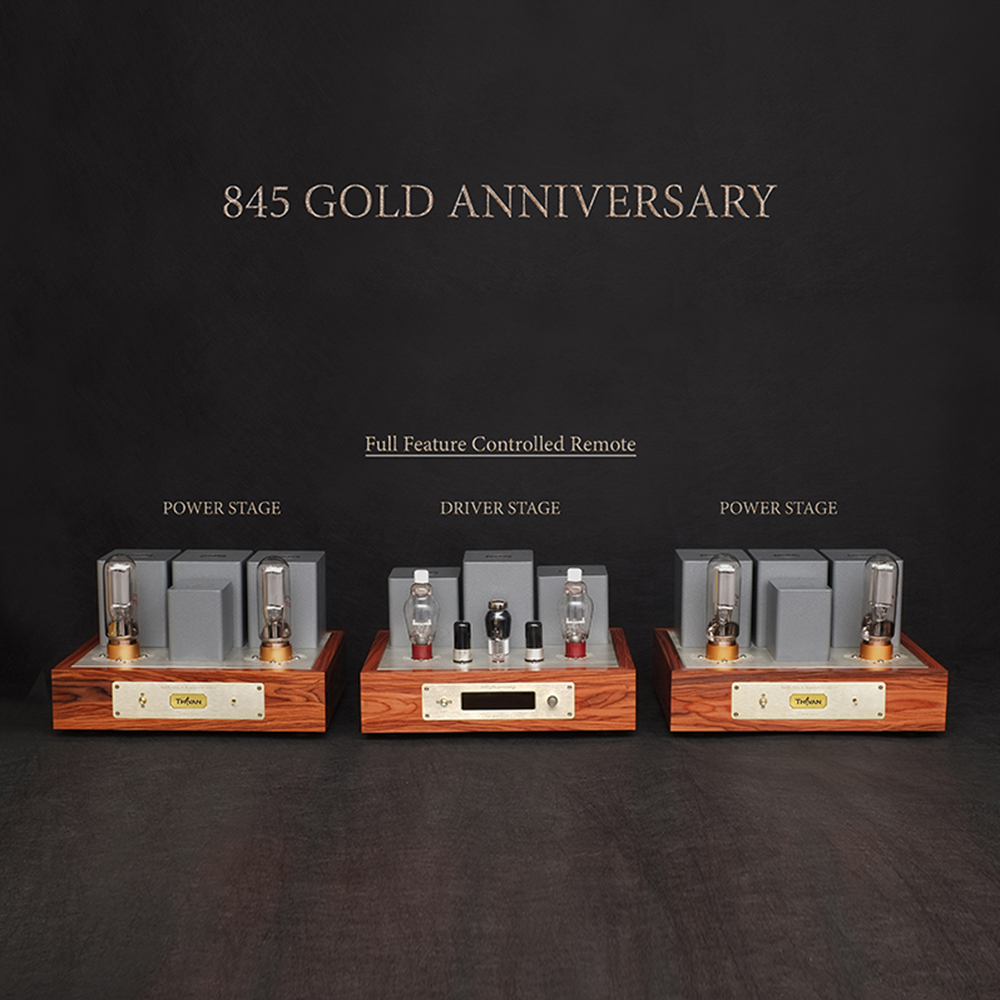

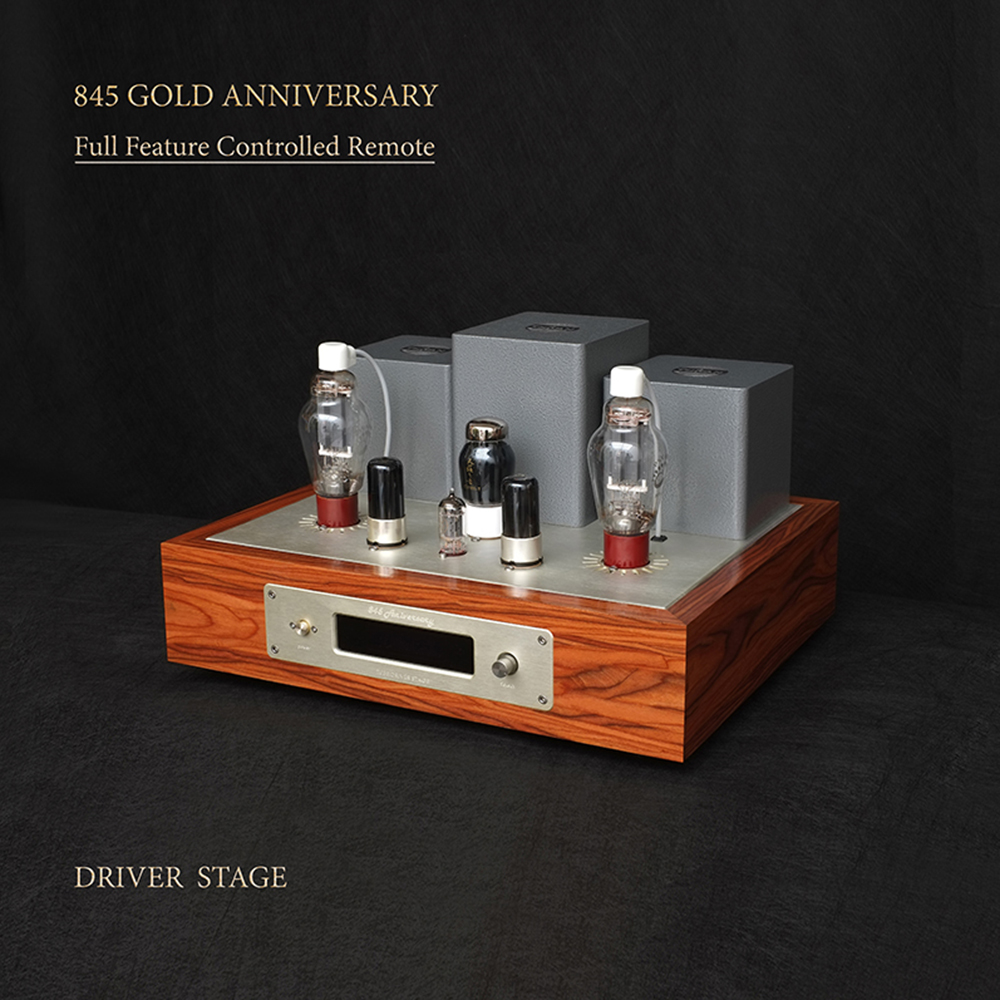

845 Anniversary is a complete solution of 3 blocks: – 1 Driver Stage (811): This class acts as the Pre Stage combined with Driver Layer 845: + Includes 3 input inputs: 2 RCA and 1 XLR + Selector select input and volume Full function remote control (GOLD version)

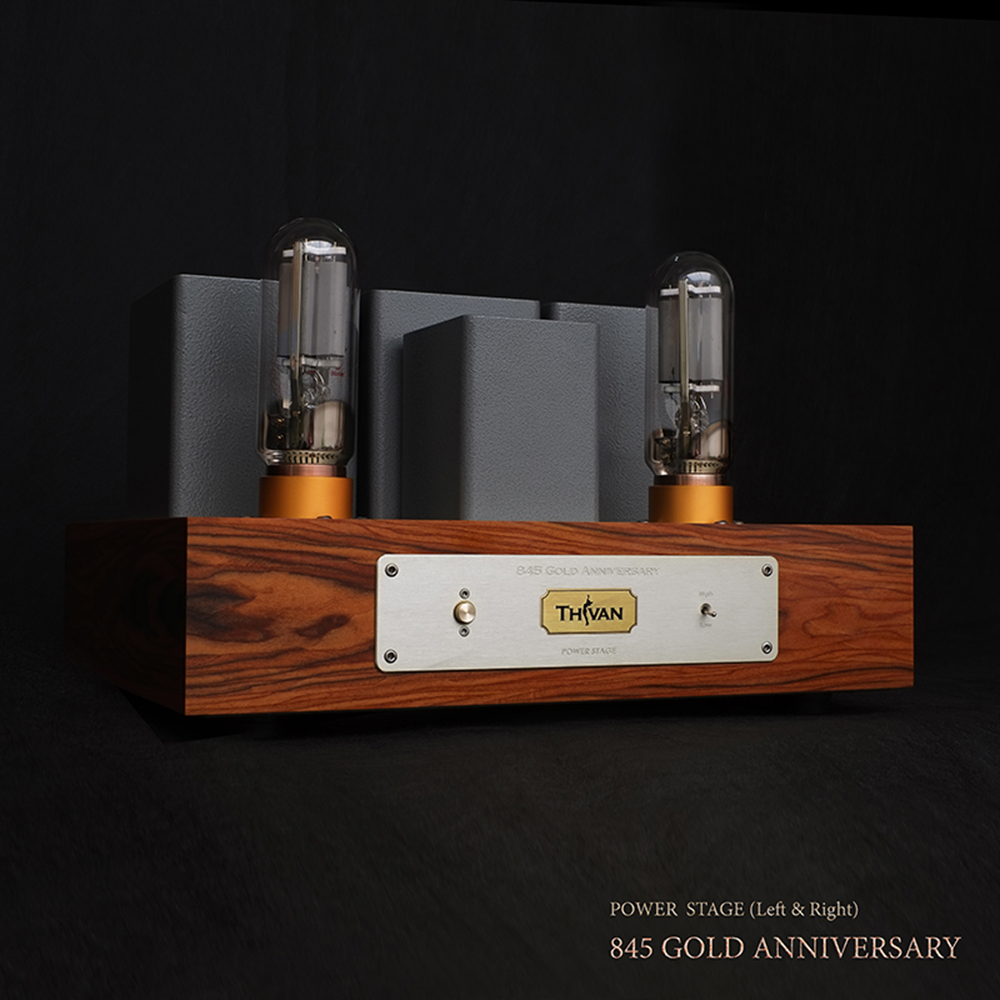

845: 811 Single Ended with 845 turn phase variable to deliver subtle and accurate sound. – 2 Power Stage (845): Ball 845 runs the Push Pull Class A circuit + High Voltage Transformer + Advanced toroidal transformer + The well-designed source with choke and oil cap + 2 different bias levels to optimize the sound of the 845 * Highlights of the design that make up the distinctive sound of the 845 Anniversary Amplifier: – Use the 811 ball and transformer to connect the Single-Ended stage to the driver floor to drive the 845 Power Ball. This combination solution utilizes the tightness, precision of the Push-Pull circuit design and the tone, emotion. of Single-Ended circuit design. – Power 60w / ch. – The distinctive sound of the 845 is blended with the sophistication of the 811 sound. – In detail, space reaches the peak of sound reproduction. – True and inspirational tone. – The bass and midrange characteristic of the 845 is considered to be the best in all types of light bulbs. ** This Amplifier is a partner of the type of speakers or, especially the loudspeaker, to bring the sound. Honest and most refined bar!
Difference between GOLD and Standard:
– Control :
GOLD: Remote fully functional Volume, Selector + Mechanics
Standard: Volume, Mechanical Selector
– Accessories :
+ GOLD: High-end, beautiful and luxurious lamp base, connector. Capacitors and key positions are all high-end, selective bulbs perfectly match for ultimate sound
Standard: The components use standard ThivanLabs
SPECIFICATIONS
Inputs | 2 x RCA; 1 x XLR |
Speakers | 4, 6, 8, 16 Ohms |
Vacuum tube complement (per channel) | – Output tubes: 4 x 845 – Pre & Driver tubes: 1 x 12AU7; 1 x 6SN7; 2 x 6V6; 2 x 811 |
Output Power (per channel) | 120W peak (60W RMS) |
Frequency response | 10Hz – 28kHz (-3dB) |
Signal-to-Noise Ratio | -90dB |
Input Sensitivity | 0.6V |
Input Impedance | 100 kOhms |
Power Requirements | 220V (POSSIBLE TO SET 100/110/117 / 240V / 50-60Hz BY DIFFERENT MARKETS) |
Power Consumption | 450W (total 3 modules) |
Dimensions (cm / block) (W x D x H) | 45 x 40 x 29 |
Weight | 32kgs / Block x 3 = 96kgs |
