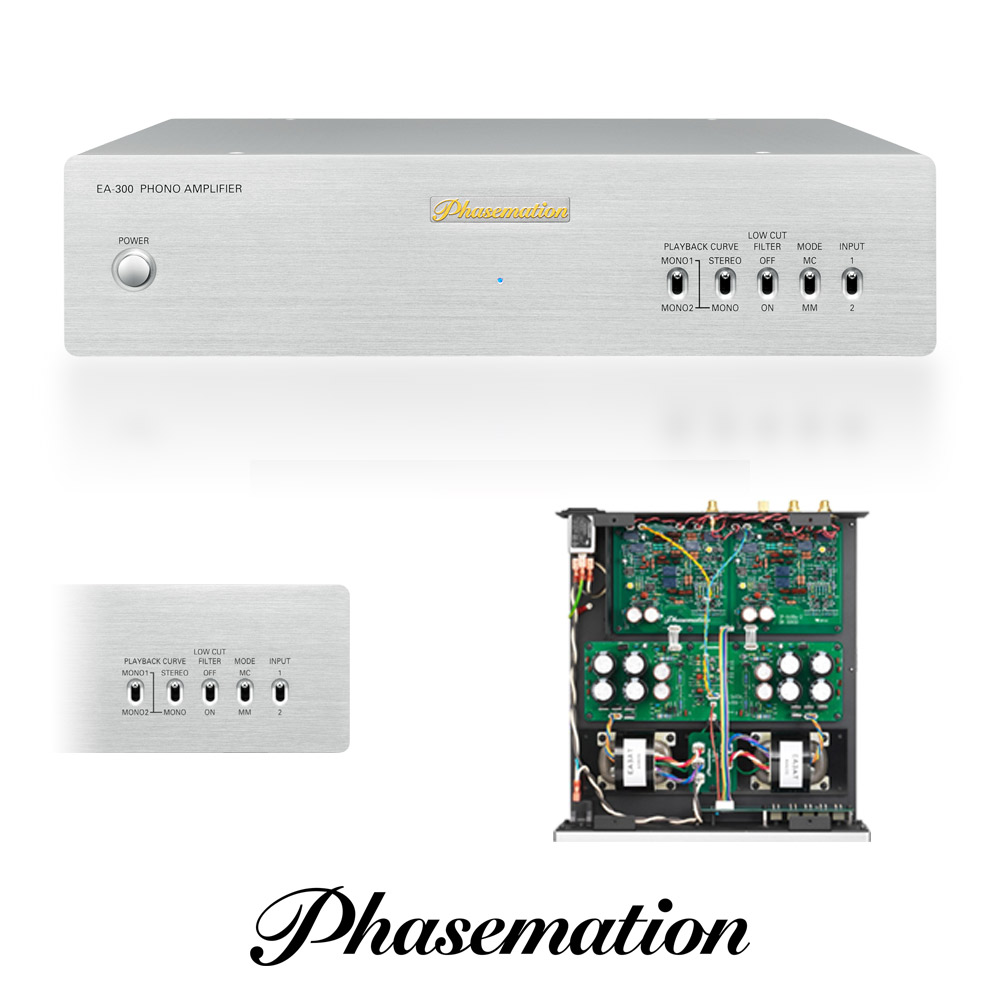

Main Features
- Non-feedback amplifier circuit manufactured by all discrete parts for all steps
- Two systems for input can be connected; and two arms can be connected.
- Low Cut SW (20Hz): Prevents swing of speaker (woofer) for a bent record
- Stereo/Monaural playing curve switch RIAA playing curve for Stereo, DECCA (UK) for MONO1 and COLUMBIA (USA) for MONO2
- Solid chassis and Dual monaural pattern
- High Quality Parts by ROHM and Zener
Product Specification
| Form | MM/MC Non-feedback type Phono amplifier | |
| MM | MC | |
| Input Sensitivity | 2.5mV | 0.12mV |
| Input Impedance | 47k ohm | 470 ohm |
| Gain | 38dB | 65dB |
| Input Equivalent Noise level | –124dBV | –144dBV |
| Rated Output Voltage | 200mV (1kHz) | |
| RIAA Curve Deviation | ±0.3dB (20Hz to 20kHz) | |
| Output Impedance | 250 ohm | |
| Channel Separation | 100dB or more (20Hz to 20kHz for MM or MC) | |
| Power Consumption | 10W (115 or 220 VAC, 50/60 Hz) | |
| External Measurements (mm) | 310 (width) x 79 (height) x 335 (depth) with terminals | |
| Weight | 5kg | |
Amplifiers
Ex-Dem Pass Labs INT-25 Integrated Amplifier
One unit ex-dem with remote and box
At Pass Labs we build Fet amplifiers with excessive output stages, huge heat sinks and massive power supplies. We use the highest quality components in simple linear topologies, assembled and tested with care and subtlety. They measure well, sound great, and are reliable. Twenty plus years of ongoing innovation have kept the X and XA amplifiers at the forefront of high-end audio.
The INT-25 embodies all this and less. A smaller stereo Class A amplifier at a lower price, it takes advantage of the lower power requirements to have simpler single-ended circuitry and fewer parts in the signal path. This also allows elimination of degeneration, “that other negative feedback” in all stages.
Download Owners Manual
Ex-Dem Pass Labs XA-25 – Stereo Power Amplifier
1 unit ex-dem with original packaging
No other offers apply or can be used
The new XA25 offers great sound at slightly lower power, without frills, at a lower price. It embodies new components and innovative circuits coupled with the best elements of the previous generation.
Degeneration, “the other form of feedback”, has been eliminated. The output stage consists of a single pair of 800 watt new generation output transistors operating push-pull Class A. The result is faster, lower distortion, lower noise, higher damping and larger Class A operating envelope into low impedance loudspeakers, all in a simple 3 stage circuit with total of three pair of push-pull gain transistors.
Ex-Dem Thivan Labs 211 Gold Swan Integrated Amplifier
- 1 unit ex-dem
- Please enquire for shipping cost if outside the UK
- The SWAN 211 Single-ended version’s sound quality is similar to that of the 211SE Anniversary version (the 2-blocked type). However, it is beautifully designed to be contained in one neat amplifier block. This one-block design, compared to the 211 SE Anniversary series, enables the Swan 211 to easily fit in narrow spaces.
Ex-Demo PS Audio Stellar Strata Integrated Amplifier – Black
- 1 unit in black ex-demo with box etc
- Stellar Strata represents our finest all-in-one music component. Strata combines a state of the art analog preamplifier, Digital to Analog Converter, 200 watt per channel power amplifier, and high definition streaming services into one, gorgeous package.
- Just add speakers. From day one of Strata’s development cycle, the engineers at PS Audio set out to craft a no-compromise all-in-one music reproduction system that was simple to use and breathtaking to hear. Connect to your home’s WiFi network, download the PS Connect App, and choose from millions of tracks available on Tidal, Qobuz, or Spotify.
- Strata can stream high-resolution audio, or connect to any digital or analog source you wish. With its many digital and analog inputs, Strata is ready to rock!
- All the features and functions you’d ever want in an analog preamplifier and modern DAC are right here in Strata. A zero-loss, fully balanced, pure, analog signal path combined with DAC features rarely found at any price level: pure DSD, asynchronous USB, Digital Lens technology, I²S to connect to our best transport, balanced throughout. Replace your preamplifier, your DAC, your power amplifier, and be stunned at the level of improvement when the full and rich tapestry of music surprises and delights your senses.
