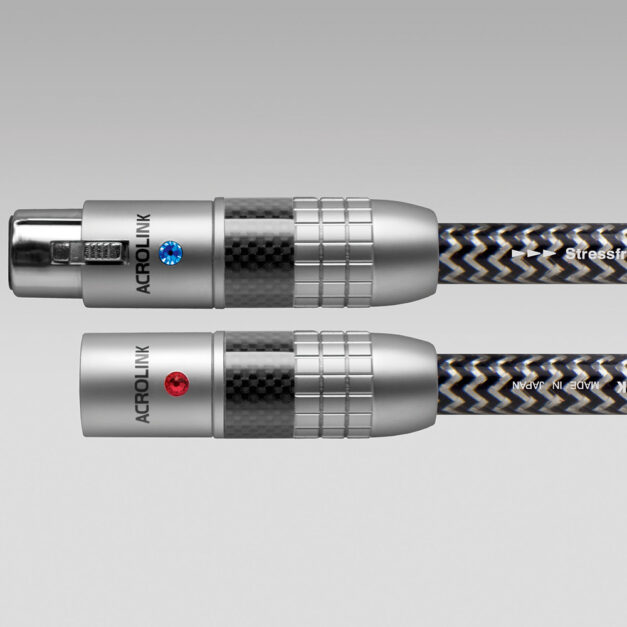

Acrolink A2400 Leggenda XLR Interconnect

Cable Materials & Specifications

• Conductor     :     7N Cu D.U.C.C Stressfree 0.26ø x 19 strands x2 cores
• Insulation     :     High molecular Polyolefin resin
• Inner sleeve     :     High molecular Polyolefin resin with amorphous powder
• Shielding     :     Copper foil tape + sliver plated copper wire + black UEW
• Outer sleeve     :     Anti UV Polyurethane
• Conductor resistance     :     17 mΩ/m
• Electrostatic capacitance     :     69 pF/m
• Cable diameter     :     10.0mm

XLR connector Specifications

• Male contact pins     :     Hallow shaped Tellurium copper
• Female contact pins     :     Beryllium copper
• Plating for contact pins     :     Rhodium
• Outer body     :     Brass + carbon fiber
• Impedance     :     110Ω

UEW stands for Urethane Enameled Wire.
Standard length of 7N-A2400 Leggenda series are 1.0m and 1.5m.
