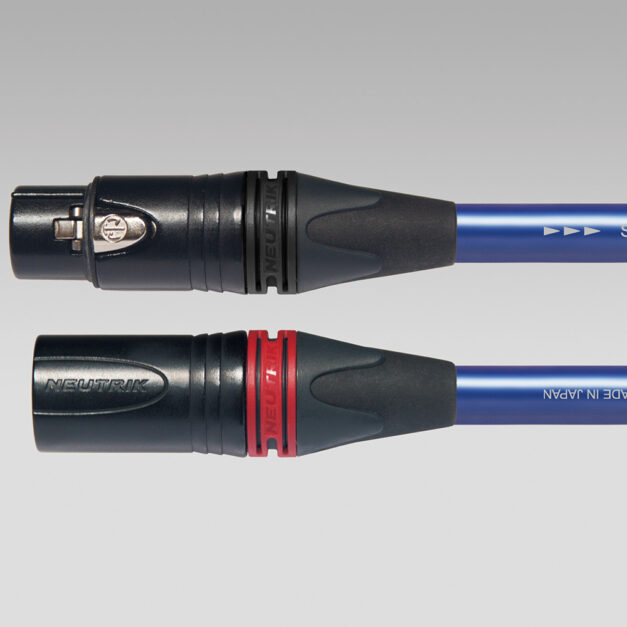

Acrolink A2110 Leggenda XLR Interconnect

Cable Materials & Specifications

• Cable diameter     :     8.0mm
• Conductor     :     7N Cu D.U.C.C Stressfree 0.18mm x 34 strands x 2 cores (AWG 18)
• Insulation     :     Polyethylene resin (Positive side), Polyolefin resin (Negative side)
• Inner sleeve     :     Polyolefin resin
• Shielding     :     Copper foil tape + Double layered 4N5 OFC (Horizontally winded)
• Outer sleeve     :     UV resistant Polyurethane resin
• Conductor resistance     :     28mΩ/m
• Electrostatic capacitance     :     59pF/m

RCA connector Specifications

• Contact parts     :     Brass
• Plating     :     Gold
• Cover     :     Die-cast Zinc

Standard length of 7N-A2110 Leggenda XLR are 0.5m 1.0m 1.5m.
