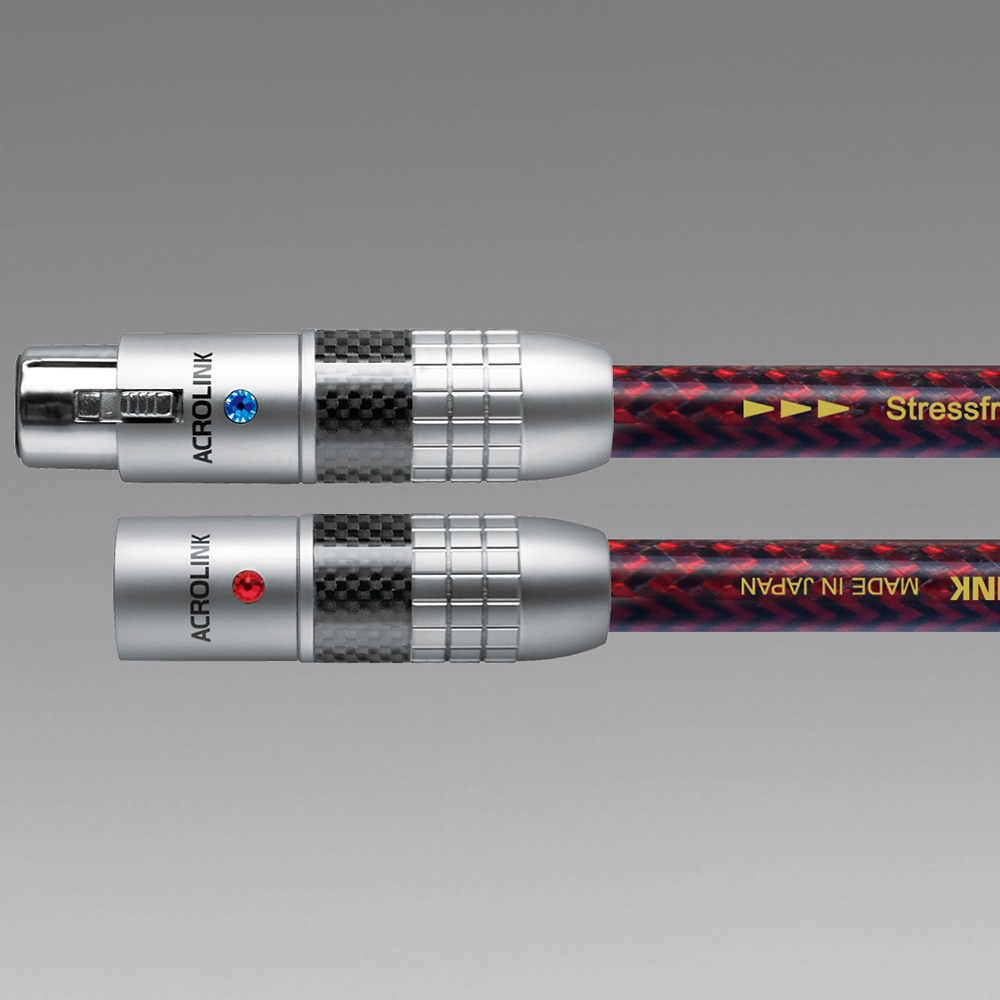

Acrolink A2080 Leggenda XLR Interconnect

Cable Materials & Specifications

• Cable diameter     :     11.0mm
• Conductor     :     7N Cu D.U.C.C Stressfree Liz wire 0.24mm x 25 strands x2 cores(AWG 16)
• Insulation     :     Polyethylene resin
• Inner sleeve     :     Hybrid Polyolefin resin with resonance control powder
• (Tungsten + Amorphous)
• Shielding     :     Copper foil tape + Braided 7N Cu wire + Noise BEAT tape + braided UEW
• Outer sleeve     :     UV resistant Polyurethane resin
• Conductor resistance     :     18mΩ/m
• Electrostatic capacitance     :     57pF/m
• Impedance specification     :     110Ω(XLR & AES/EBU)

XLR connector Specifications

• Center contact pin     :     Hollow shaped Beryllium copper
• Negative side contact part     :     Deoxidized Phosphor copper
• Plating     :     Silver layered Rhodium(Hand polished before plating)
• Cover     :     Aluminum + Carbon fiber + Duralumin

UEW stands for Urethane Enameled Wire.
Standard length of 7N-A2070 Leggenda series are 1.0m and 1.5m.
