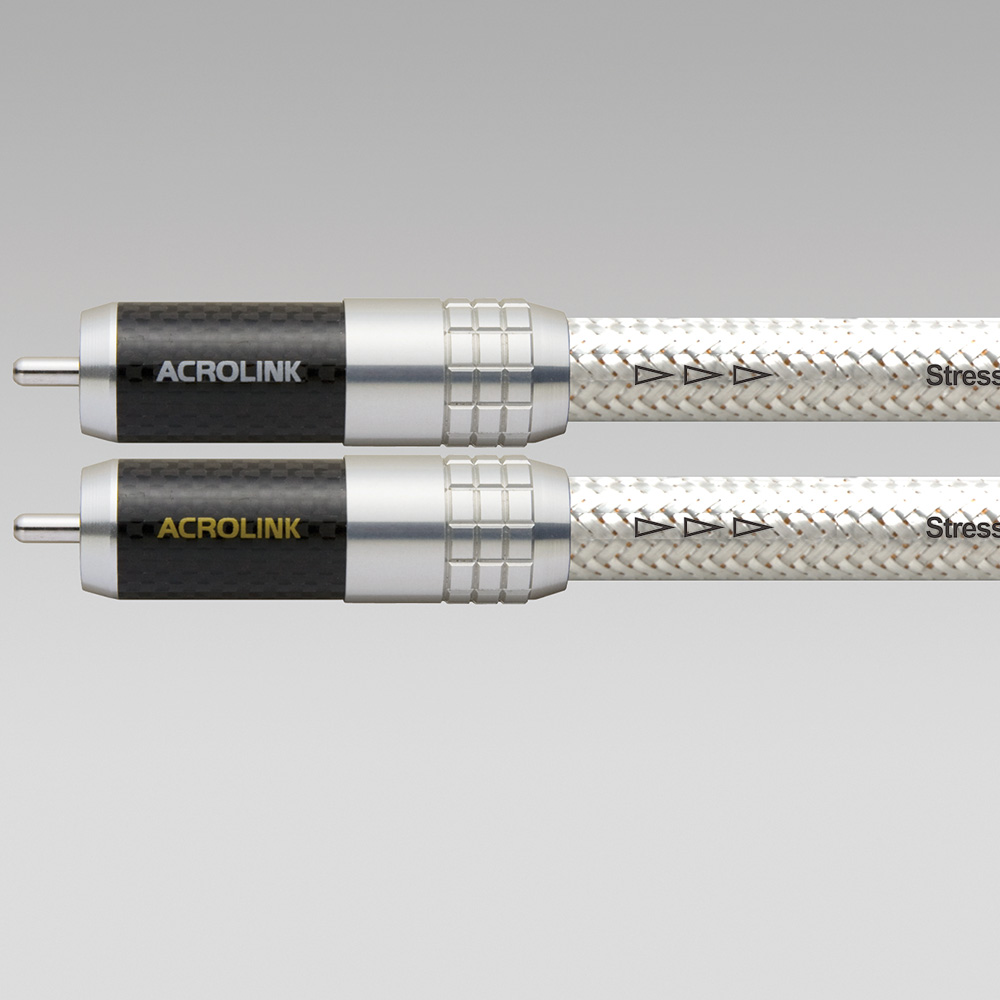

Acrolink 7N-DA6100IV Mexcel RCA Interconnect

Cable Materials & Specifications

• Center conductor     :     2.0ø 7N Cu MEXCEL
• Insulation     :     Polyethylene
• Outer conductor     :     7N Cu MEXCEL braided flat angled 0.085mm x 1.26mm x 24 strands
• Inner shielding     :     Copper tape
• Outer shielding     :     Braided silver plated copper wire
• Outer sleeve     :     UV resistant Polyurethane
• Conductor resistance     :     Under 8.0 mΩ/m
• Electrostatic capacitance     :     48 pF/m
• Impedance     :     75 Ω
• Cable diameter     :     11.0 mm

RCA connector Specifications

• Center contact pin     :     Beryllium copper(Hot)
• Outer connect parts     :     Phosphor bronze(Cold)
• Plating     :     Polished twice before being plated with silver layered rhodium
• Outer body     :     Duralumin + carbon fiber + Aluminum

MEXCEL is a conductor insulation technology using a system called MEDIS®(Mitsubishi Electro Deposition Insulation System)
which is developed and patient technology by Mitsubishi Cable Industries Ltd.Each conductor is perfectly and evently insulated
