Ultra high purity, 7N (99.99999%) copper; advanced refining process still leaves the great variations in composition of impurities and crystalline structure according to employed method. All 6N copper materials are different, and in reality, most of so called 6N, 7N materials are not measured comprehensively. As shown in disclosed analysis table, ACROLINK is the sole producer of stabilized ultra pure copper. It is essential to maintain high purity, when necessary to achieve extended frequency response because composition of impurity inhibits capability due from impedance variance.
A unique stress-free process; is applied after formation of actual cable core structure for maximum effect, in special environment maintaining original purity to restore crystalline disorder caused by extrusion process.
Insulation material; new polymer polyolefin, presently the best material available, has been chosen as insulator for extremely low dielectric constant factor which is 1/3 of polypropylene and 1/4 of PVC.
RCA plugs; Made by Sanpo Shindo with their patented Ecological Brass which does not contain Lead, instead contains silicon. There is virtually no resonance due to its high damping characteristics to realize remarkably clear and fast sound with high resolution and minimum contact noise level. It is precision machined and finished with high quality 24k gold plating.

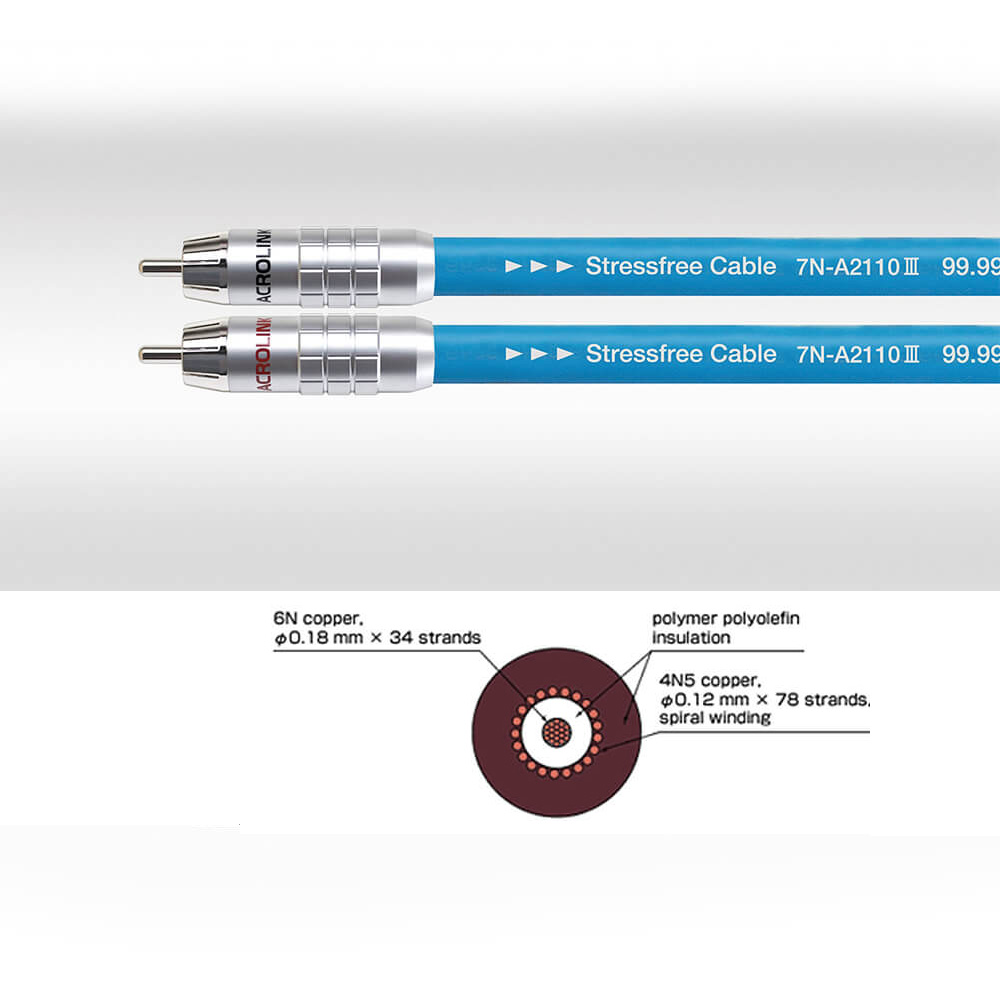

Balanced 2-core co-axial cable; is the fundamental structure for higher quality audio cable, providing equal environment for both poles to enable ideal balanced transmission. ACROLINK sets up an ideal spacing between conductors for optimum result.
Resonance absorption; is one of big factors to decide final sound quality. ACROLINK always paid extra attention and built up tremendous know-how. Every product is carefully composed with selected materials in order to achieve perfectly balanced and effective absorption.
The structure of cable must be designed ideally for optimum electromagnetic formation, therefore with minimum adverse properties such as electrostatic capacitance, inductance, dielectric constant factor etc., since signal transmission is carried out on electromagnetic field.
|Conductors||:||Center core: 7N copper, ø0.18 x 21 strands (red and black)
Cold side: 7N copper,ø0.18 x 21 strands
Shield: 7N copper, ø0.12 x 24 strands x 5 braids
Drain line: ø0.08 x 19 strands
|Conductor resistance||:||30 mΩ/m|
|Electrostatic capacitance||:||58 pF/m|
|Lengths||:||7N-A2110 II RCA/0.6 m, 1.0 m, 1.5 m
7N-A2110 II XLR/ 1.0 m, 1.5 m
Custom lengths available./td>
